Grinding Head Move Type Surface Grinding Machine Surface Grinder M7160 600X1600

Product Description

Surface Grinder (M7160)
Heavy duty grinding head move type surface grinding machine
We adopt speical type plain bearing at the spindle nose.
Worktable longtidutinal movment and grinding head cross movement is
support by hydraulic system
They are steplss and variable speed.

SPECIFICATION							M716 0X1250	M716 0X1600	M716 0X2000
S ize of workatable ( L × W × H )				mm			1250X6 00	1600X600	2000X600
Max . Longitudinal movement of worktable				mm			1350	1700	2100
Max. Distance from the spindle centerline to the worktable surface				mm			800	800	800
Max. Cross movement of grinding head				mm			680	680	680
Max. Vertical movement of grinding head				mm			600	600	600
Vertical movement of the grinding head by handwheel	Per gradutaion		mm				0.005	0.005	0.005
	Per revolution		mm				0.5	0.5	0.5
Rapid lifting motor		Power			KW		0.37	0.37	0.37
		speed			R/min		1450	1450	1450
Abrasive wheel dim ( D × d × W )					mm		400× 50 × 203	400× 50 × 203	400× 50 × 203
Speed of grinding wheel					r/mm		1440	1440	1440
T otal power of motor					KW		14	14	14
Power of spindle motor					KW		7.5	7.5	7.5
Power of o il pump motor					KW		5.5	5.5	5.5
Processing accuracy					mm		0.015/1000	0.015/1000	0.015/1000
Surface roughness						μ m	Ra:0.63	Ra:0.63	Ra:0.63
N/G weight						kg	5 6 00/ 63 00	6500/7300	7500/8200
Package LXWXH						mm	3800 X2 700 X 2800	4500X2700X2800	5500X2700X2800

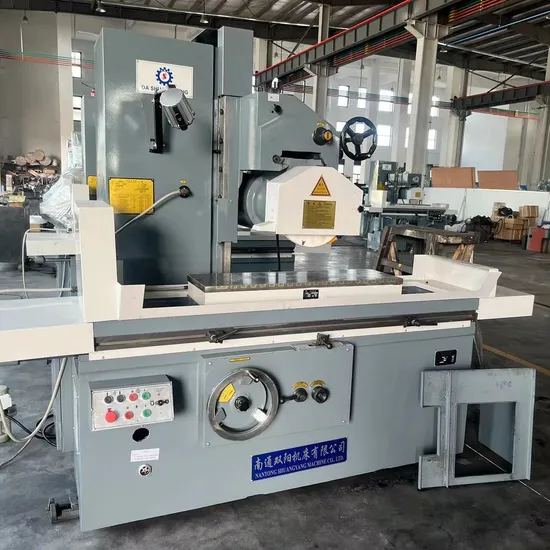

DETAIL PHOTOS
WORKPLANT
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as surface grinding machine, CNC surface grinder ,CNC Milling Machine ,Vertical Machining Center ,Drilling Machine ,gantry milling machine , CNC gantry milling machine, CNC gantry grinding machine so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in NO 370 Changjiang North Road, NANTONG ,JIANGSU ,CHINA. If you have interest to visit our factory, pls inform
me ahead, i will arrange and company you your visit period.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
