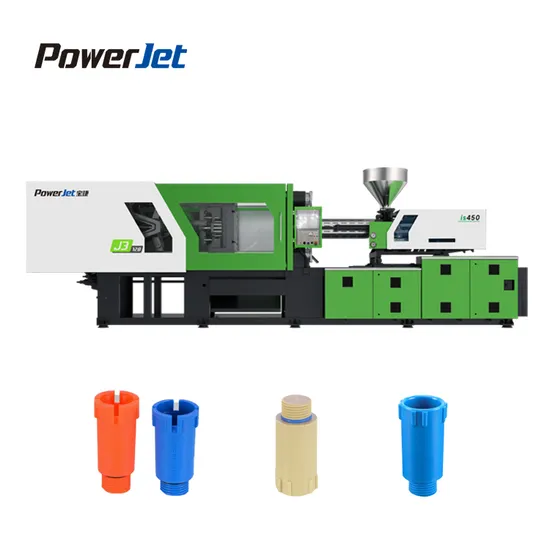

Pipe Fitting Plastic Cap PPR Threaded End Plug Injection Molding Machine 100 Ton

US$23,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
J3-128
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Certification
CE, ISO9001:2008
Clamping Force
1260kN
Video Outgoing-Inspection
Provided
Plastic Processed
PP, PC, ABS, HDPE, PA, HDPE/PP, ABS/PP, PE/PP
Motor
Servo Energy Saving Motor
Specification
CE standard
Trademark
Powerjet
Origin
China
HS Code
8477101090
Production Capacity
5000

Product Description


HIGH PRECISION INJECTION MOLDING MACHINE
Powerjet New Series Hydraulic Injection Molding Machine With Faster Injection And Plasticizing Speed, More Stable And Higher Efficiency.
Faster injection speed & charging speed, better stability, higher Efficiency
Clamping Force: 900~10000(KN)
Driving System: Hydraulic
Motor Type: Servo
Applications: Food And Beverage Packaging, Necessities Products, Home Appliances, Electrical Components, Automotive Parts, etc.
Machine Details
Product Parameters
Description
UNIT
BJ128-V6/S6
CLAMPING UNIT
Clamping force
KN
1260
Opening stroke
mm
350
Max.datlight
mm
750
Platen size
mm
610*610
Space between bars
mm
410*410
Max.mold height
mm
400
Min.mold height
mm
145
Ejector stroke
mm
100
Ejector force KN 42
INJECTION UNIT
Screw diameter
mm
36
40 45
Screw L/D Ratio
L/D
23
20 18.2
Injection Pressure
MPa
215
174 138
Shot volume
cm³
193
238 302
Shot weight (ps)
g
173
213 270
oz
6.1
7.5 9.5
Injection rate
g/s
84
103 131
Screw stroke
mm
190
Screw speed
rpm
190
POWER UNIT
Hydraulic system Pressure
MPa
17.5
Pump motor power
KW
11/14
Heater power
KW
6
GENERAL
Dry-cycle time s 1.5
Oil tank capacity
L
210
Machine weight
T
3.5
Machine dimensions (L*W*H)
m
4.3x1.2x1.8

Company Profile
We have established a global marketing network. To deliver the value of Powerjet injection molding machine and extrusion blow molding machine to over 100 countries area. Multiple senior managers and business elites worldwide. Become trustworthy partners. Provide the most thoughtful service and fastest user support for you constantly. sincerity for you.
Satisfied Customers
FAQ
Q1: Are you a manufacturer or trading company? A1: We are a factory for plastic machines. Over 23 Years Experience In Manufacturing Injection Molding Machine And Blow Molding Machine. Q2: Delivery time A2: Normally Machine Delivery from the factory in 0-60 days after receiving the down payment. (During Chinese Public Holidays like National Day or Chinese New Year, the delivery time should be 10-30 days longer accordingly). Q3: Where is your factory located? A3: Our factory is located at No.5 Chuangxin Xi Road, Leping Town, Sanshui District, Foshan City, Guangdong Province, China. 1h drive from Guangzhou to our factory. Welcome to visit our factory.
