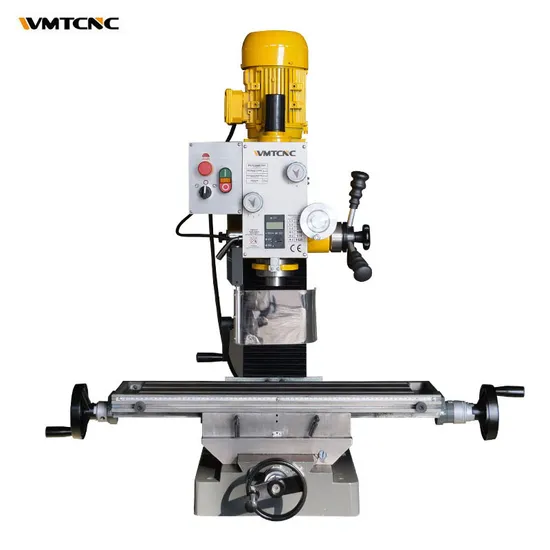

machine tools ZX32G metal drilling and milling machine

Product Description

Product Description
Machine Features:
1. Milling and drilling machine.
2. CE high preision Drilling and Milling machine.
3. High strength column.
4. Good strength gear griding ,low nose.
5. Head stock tilts left and right.
6. Wide electrical box,easy operation.
7. High presion manual feeder.
8. Depth ruler,easy operation and read.

Specification	ZX32G	ZX32GV
Max drilling capacity	32mm	32mm
Max tapping capacity	16mm	16mm
Max face milling capacity	63mm	63mm
Table size	700*180mm	700*180mm
Spindle taper	MT3/R8	MT3/R8
X-axis travel	410mm	350mm
Y-axis travel	205mm	230mm
Z-axis travel	310mm	380mm
Spindle travel	85mm	75mm
T-slot size	12mm	12mm
Spindle speed range	95-1420rpm	92-1420rpm
Headstock tilt left and right	90 degree	90 degree
Column size	150×130×690mm	150×130×690mm
Base size	550×340mm	550×340mm
Max. distance from spindle center to column	203mm	214mm
Max. distance from spindle center to table	336mm	400mm
Motor power	750w	750w
N.W/G.W	170/200kgs	185/215kgs

Detailed Photos
Company Profile
Professional Service
Customers' Feedback
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
