Product Details
Product Description
Product Description

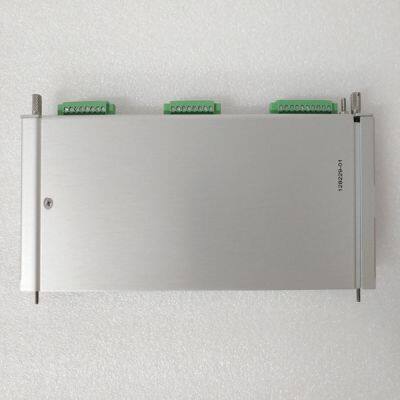

Brand:BENTLY
Type:128229-01
Origin: the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Module of PLC, DCS, ESD system card, the card is a vibration monitoring system, steam turbine control system module, the advantages of the gas generator spare parts brand: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts
Our main products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, mechanical, electronic manufacturing, automobile manufacturing, plastic machinery, electric power, water conservancy, water treatment/environmental protection, boiler heating, energy, power transmission and distribution and so on.
EXTR/ADM Control Status Messages • Disabled—Extr/Adm control is not enabled and will have no effect. • Enabled—Extr/Adm has been enabled but is not active or in control. Permissives have not been met (speed <“E/A enable speed” setting, generator or tie breaker open). • Active / Not in Cntl—Extr/Adm has been enabled but the turbine is on a operating limit with Speed • Priority selected or the LP valve limiter is limiting Extr/Adm PID output. • In Control—Extr/Adm PID is in control of its process. • Active w/Rmt Setpt—Extr/Adm has been enabled and the Remote Extr/Adm setpoint is in control of the setpoint but the turbine is on a operating limit with Speed Priority selected or the LP valve limiter is limiting Extr/Adm PID output.
• Control w/Rmt Setpt—Extr/Adm is in control and the Remote Extr/Adm setpoint is positioning the Extr/Adm setpoint. • Inhibited—Extr/Adm cannot be enabled; the Extr/Adm input signal has failed, a controlled stop is selected, or the unit is shut down. EXTR/ADM Dynamics The Extr/Adm PID uses its own set of dynamic settings. These values are programmable and may be tuned at any time. Refer to Chapter 5 of this manual for information on Extr/Adm PID Dynamic Adjustments. EXTR/ADM Droop When sharing control of a parameter with another external controller, the Extr/Adm PID can also receive a programmable DROOP feedback signal for control loop stability. This feedback signal is a percentage of the Extr/Adm PID’s output. By including this second parameter into the control loop, the Extr/Adm PID becomes satisfied, and does not fight with the other external controller over the shared parameter. If Extr/Adm droop is used, the Extr/Adm input signal will not match the Extr/Adm setpoint when in control. The difference will depend on the amount (%) of droop programmed and the output of the Extr/Adm PID. The Droop value fed back to the Extr/Adm PID is equal to the following defaulted settings: PID OUTPUT % x ‘EXTR/ADM DROOP %’ x ‘RATED EXTR/ADM SETPOINT’ x 0.0001 Example: 25% x 5% x 600 psi x 0.0001 = 7.5 psi The ‘Rated Extr/Adm Setpoint’ is defaulted as the ‘Max Extr/Adm Setpoint’ and can be adjusted in the Service Mode.
The ‘Extr/Adm Droop %’ and ‘Max Extr/Adm Setpoint’ values are set in the Program Mode and the ‘PID output %’ is determined by the Extr/Adm demand. Refer to Volume 2 of this manual for information on related Service mode tunables. EXTR/ADM Setpoint The Extr/Adm setpoint may be adjusted from the 505E keypad, external contacts, Modbus commands, or through a 4–20 mA analog input signal. A specific setting can also be directly entered from the 505E keypad or through Modbus commands.
>>
