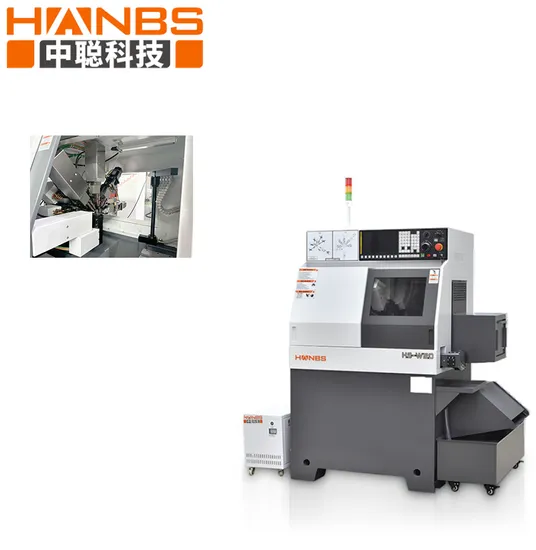

Hanbs Permanent Magnet Synchronous Servo Spindle CNC Lathe

Product Description

Permanent magnet synchronous servo spindle cnc lathe
Product Description

Strong adaptability
Strong adaptability to processing objects and the characteristics of single piece production of products such as molds provide suitable processing methods for mold manufacturing.
Stable processing quality
High machining accuracy, capable of using five types of cutting tools simultaneously to process products, with stable machining quality.
High flexibility
Cnc lathe can perform multi coordinate linkage and process complex shaped parts.
Time and effort saving
When changing the machining parts, it is generally only necessary to change the CNC program, which can save production preparation time and does not require too much manual intervention.
High production efficiency
The machine tool itself has high precision and rigidity, and can choose favorable processing quantities, resulting in high productivity.
Product Photoes
Back spindle
Five Knife Cutter
Power drilling on the back
Product Information

control system	HANBS self-innovate (yn 1.0 versions)
Servo axis number	Standard 12 axis
Programming method	5-channels G code programming, each axis can be programmed separately
The number of knives	Group 5
Maximum machining diameter	Φ15mm Φ20mm
Maximum machining length(50mm in guide mode)	The walking knife mode is 50mm
Maximum axial bore diameter (When the back shaft is 12mm and the handle is 10mm)	Φ6mm
Drilling arm handle diameter	∅5(Three)∅6(Two)
Attack capability (spindle reversal mode)	M6 Copper
Dental tapping ability (doraxial delivery)	M5 Copper
Car thread function	Yes
Multi-knife synchronous processing function	Yes
Radial max bore diameter	Φ7mm
Radial max bore tapping size	M5
Maximum clamping diameter of the back side spindle	∅12mm
Maximum bore diameter of the back-side spindle	∅6mm
Maximum tapping diameter of the back-side spindle	M6
Spindle power	2KW(With the function of score)
Backside platform axle power	1.0KW
Maximum spindle speed(For short use only)6000rpm	6000rpm
Back maximum speed (for short use only)	6000rpm
Maximum removal length of piece	50mm
Side power tool unit (optional)	2
End face power tool unit (optional)	1
Row knife ( 8 * 120 * 3))	3
Standard maximum number of tool installed (5 knives + 5 drill / boring)	10
High maximum number of tool installed (5 + 5 drilling / boring + 1 back strong drill)	11
Knife size	8*8
Z1.2.3.4.5 axial stroke	50mm
X1.2.3.4.5 axial stroke	30mm
Backshaft itinerary	150mm
X1.2.3.4.5 axial power	400W
Z1.2.3.4.5 axial power	400W
Z1, Z2, Z3, Z4, Z5, and Z2 axis fast-forward speed	30m/min
X1, X2, X3, X4, X5 axis fast forward speed	30m/min
Center height of spindle	1010mm
High version input power	7.6KW
weight	1800Kg
Fuel tank storage	50L
size	1550*1060*1650mm

Processed Product Display
Factory
Certifications


Exhibition & Events

F&Q
1: How do I choose the most suitable machine?
A: In order to find the most suitable machine for you, please provide us with your specifications and we will determine the most suitable model for you. Alternatively, you can select a specific model from our product range. If you have product drawings, please share them with us and we will make sure that we provide you with the best selection of machines.
2: Where is your factory located? Is it possible to visit?
A: Visiting is possible. Our production base is strategically located at No. 13, Shukou Wenshi Road, Dalang Town, Dongguan City, Guangdong Province, China. We warmly invite you to visit any of our factories.
3: What is the minimum order quantity (MOQ)?
A: The MOQ is 1 unit, but larger quantities may be required for certain low-cost machines.
4. What are the after-sales services?
A: We have a professional technical team, can be 24 hours online for you to solve the problem.
5. Does the product accept customized service? What aspects can be customized? (Such as color, shape, size, etc.)
A: Yes, customized service is feasible, such as printing your company logo and so on.
6. Do you accept small orders (or what is the minimum order quantity, etc.)?
A: Yes, we can also provide 1 machine.
7. What kind of CNC system do you use?
A: Our CNC operating system is our self-developed servo spindle, our own brand, which has been very popular in the market because of its easy operation and comprehensive functions.
8. What are the application fields or uses of the product?
A: Widely used in communication equipment, connectors, cell phones, home applications, aerospace, medical equipment, automobiles, miniature shafts, optical instruments, clocks and watches, and a variety of hardware accessories.
Additional Information:
1. For best advice, please provide dimensional and material details of the workpiece and drawings. Share

---
