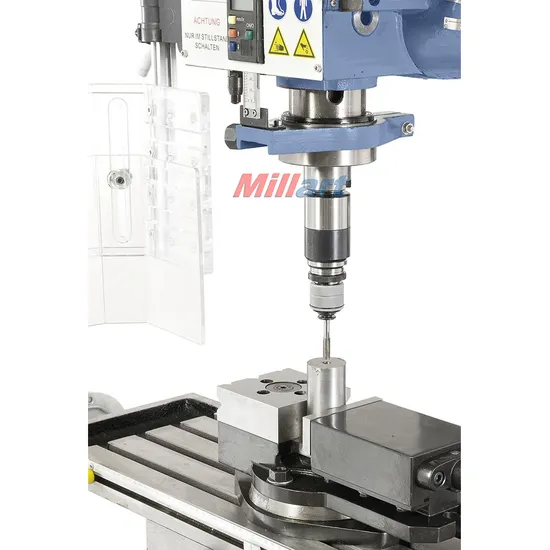

Small Variable Frequency Drilling and Milling Machine Zay7032V Zay7040V Zay7045V

Product Description

Product Description
Technical parameter :
Feature:
The main performance characteristics:
Variable speed
Milling, drilling, boring, reaming and tapping
Head swivels 90 vertical
Micro feed precision
Adjustable gibs on table precision.
Strong rigidity, powerful cutting and precisely positioning.

ITEM	ZAY7032V	ZAY7040V	ZAY7045V
Drilling capacity	32mm	40mm	45mm
Max Face mill capacity	63mm	80mm	80mm
Max End mill capacity	20mm	32mm	32mm
Distance from spindle nose to table	400mm	400mm	400mm
Min.distance from spindle axis to column	285mm	285mm	285mm
Spindle travel	130mm	130mm	130mm
Spindle taper	M.T.3 or R8	M.T.4 or R8	M.T.4 or R8
Range of spindle speed (2 steps)	100-530, 530-2800r.p.m,	100-530, 530-2800r.p.m,	100-530, 530-2800r.p.m,
Swivel angle of head stock	±90°	±90°	±90°
Table size	800x240mm	800x240mm	800x240mm
Y axis travel of table	175mm	175mm	175mm
X axis travel of table	500mm	500mm	500mm
Motor power(DC)	1.1KW	1.1KW	1.5KW
Voltage/Frequency	110V or 220V	110V or 220V	110V or 220V
Net weight/Gross weight	300kg/350kg	310kg/360kg	310kg/360kg
Packing size	77x88x116cm	77x88x116cm	77x88x116cm

Standard accessories:

Allen wrench

Wedge

Draw bar

Optional accessories:

Drill chuck

Reduction sleeve

Stand base

Auto power feed

Machine Vice(125)

Milling cutter holder

Auto tapping electrical

Collets chuck

Work lamp

Coolant system

Digital readout 2 axis

Digital readout 3 axis

Company information:
Packaging & Shipping
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.

Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.


Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.

---
