Corrosion-Resistant 3 Phase Electrical Industrial Panel Fixed Relay Socket Coupler

Product Description

Detailed PhotosProduct Name: Industrial Socket
Model Number:KG-113
Body Material: Nylon(PA66)
Pin Material: Solid Brass Pin

Appellation	Code	Rated Current	Earth contact position	Rated voltage range	Number of Poles	Protection grade
Socket	KG-113	16A	6h	220-250V~	2P+E	IP44
Socket	KG-123	32A	6h	220-250V~	2P+E	IP44
Code	Size(mm)			Cable nominal cross-section area(mm²)
	a	b	c
KG-113	90	71	135	1-2.5
KG-123	100	71	151	2.5-6

Product Name: Industrial Connector
Model Number:KG-213
Body Material: Nylon(PA66)
Pin Material: Solid Brass Pin

Appellation	Code	Rated Current	Earth contact position	Rated voltage range	Number of Poles	Protection grade
Connector	KG-213	16A	6h	220-250V~	2P+E	IP44
Connector	KG-223	32A	6h	220-250V~	2P+E	IP44
Code	Size(mm)				Cable nominal cross-section area(mm²)
	a	b	d	Φ
KG-213	72	51	132	6	1-2.5
KG-223	92	64	146	8	2.5-6

Product Name: Industrial Socket
Model Number:KG-0132-4
Body Material: Nylon(PA66)
Pin Material: Solid Brass Pin

Appellation	Code	Rated Current	Earth contact position	Rated voltage range	Number of Poles	Protection grade
Socket	KG-1132	16A	6h	220-240V~	2P+E	IP67
Socket	KG-1232	32A	6h	220-240V~	2P+E	IP67
Code	Size(mm)							Cable nominal cross-section area(mm²)
	a	b	c	d	e	f	g
KG-1132	137	87	82	71	6	47	5	1-2.5
KG-1232	153	101	82	71	6	47	5	2.5-6

Product Name: Industrial Socket
Model Number:KG-1143
Body Material: Nylon(PA66)
Pin Material: Solid Brass Pin

Appellation	Code	Rated Current	Earth contact position	Rated voltage range	Number of Poles	Protection grade
Socket	KG-1143	16A	6h	380-415V~	3P+E	IP67
Socket	KG-1243	32A	6h	380-415V~	3P+E	IP67
Code	Size(mm)			Cable nominal cross-section area(mm²)
	a	b	c
KG-1143	100	75	185	1-2.5
KG-1243	105	75	203	2.5-6

Product Name: Industrial Connector
Model Number:KG-2132
Body Material: Nylon(PA66)
Pin Material: Solid Brass Pin

Appellation	Code	Rated Current	Earth contact position	Rated voltage range	Number of Poles	Protection grade
Connector	KG-2132	16A	6h	220-240V~	2P+E	IP67
Connector	KG-2232	32A	6h	220-240V~	2P+E	IP67
Code	Size(mm)			Cable nominal cross-section area(mm²)
	a	b	c
KG-2132	133	78	6-15	1-2.5
KG-2232	162	96	10-20	2.5-6

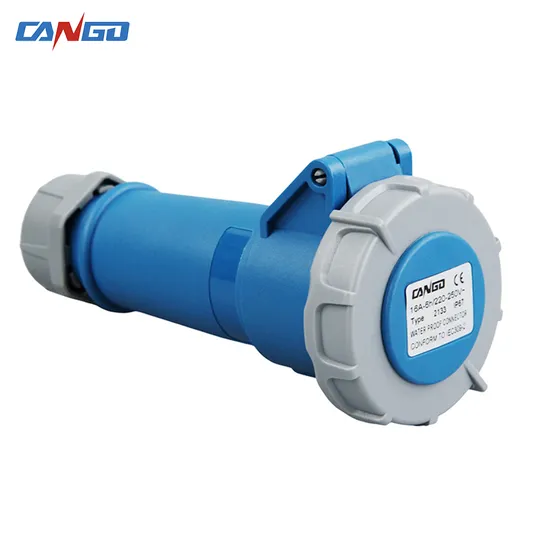

Product Name: Industrial Connector
Model Number:KG-2133
Body Material: Nylon(PA66)
Pin Material: Solid Brass Pin

Appellation	Code	Rated Current	Earth contact position	Rated voltage range	Number of Poles	Protection grade
Connector	KG-2133	16A	6h	220-250V~	2P+E	IP67
Connector	KG-2233	32A	6h	220-250V~	2P+E	IP67
Code	Size(mm)			Cable nominal cross-section area(mm²)
	a	b	c
KG-2133	79	77	152	1-2.5
KG-2233	102	102	205	2.5-6

Product Name: Industrial Connector
Model Number:KG-2252
Body Material: Nylon(PA66)
Pin Material: Solid Brass Pin

Appellation	Code	Rated Current	Earth contact position	Rated voltage range	Number of Poles	Protection grade
Connector	KG-2152	16A	6h	220-380V~	3P+N+E	IP67
				240-415V~
Connector	KG-2252	32A	6h	220-380V~	3P+N+E	IP67
				240-415V~
Code	Size(mm)				Cable nominal cross-section area(mm²)
	a	b	c	sw
KG-2152	145	92	8-16	42	1-2.5
KG-2252	168	102	12-22	50	2.5-6

Product Description
Manufacturing Technique
Our AdvantagesWe ovide diffe ent series products for different envi onment.Using esh material impo ting good quality copper and on parts to make product with longer mechanical life esistance to seve weather, ageing ,alkali resistance ate proof and dust evention.
Company ProfileZhejiang Kangge Electric Co.,Ltd, with the logo CANGO, established in 2010, located in Yueqing Industrial Park, Zhejiang Province,is one of the technological enterprises in Zhejiang province,who devotes itselfto the design,R&D,manufacture, sale and service of electrical products and solar system.Since the establishment in 2010,Kangge insists on the principle of"honest-based,wining success through quality", and develop its spirit of"unity, communication, development and innovation".We continuously develop and innovate in the area of electrical products and solar system, perfect series products, to meet the demand of domestic and abroad customers.
Kangge's existing plant area is more than 50000 square meters.Total employees are more than 200,among which,15 are senior management employees;20 are professional technical engineers;8 are R&D employees.Up to now,all of Kangge's products have passed CE,the test of China Compulsory Product Certification(CCC test),ISO9001 Quality and Management System Certification,ISO14000 Environmental Management System Certification,as well as OHSAS18000 Occupational Health and Safety System Certification.
Exhibition Display
Certifications
FAQQ:Your INDUSTRIAL PLUG&SOCKET seems perfect but what's the difference between you and other suppliers? Because I find some cheaper price from others!
A: We strick in high quality.The materials of our industrial plugs and sockets are PA66 nylon. They have all passed the flame retardant test V0 rate( 960°C) and reached an impact resistance level of IK08. The pins inside are made of high-quality solid brass,good corrosion resistance.Products pass the test of CQC and CE.
Q: Is your company a manufacturer for a trading company?
A: We are professional manufacturer in industrial electrical appliances since 2010 years.
Q:Can I get a sample for test before place order?
A:Of course.
Q:Can you print our own logo?
A:Yes, we provide OEM&ODM service.And we made a lot of customized products.
Q:How's the delivery?Because I really need them is urgently?
A:We will deliver sample in 2-5days.Mass production around 30 days.If you have urgent requirement, pls send us list to check with stock. We have sufficient stock for best-sellers.
Q: What's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C,Trade Assurance.

---
