| US$210.00-230.00 | 1 Set (MOQ) |

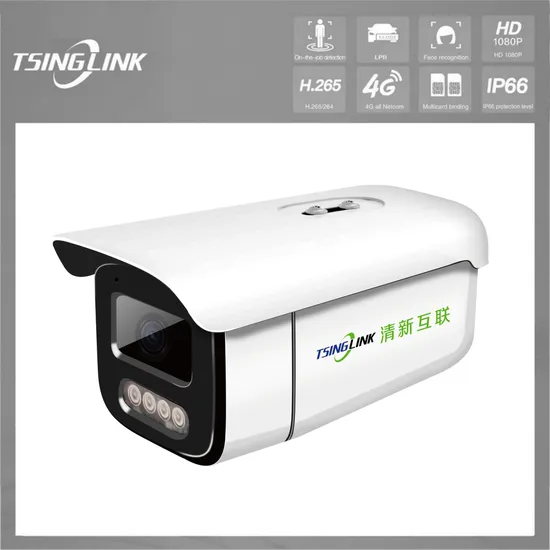

TSC620-F camera a black light full color camera, with H.264/H.265 video coding and network transmission functions, support license plate, vehicle color and model recognition and other intelligent functions, can be widely used in highways, streets, intersections and other traffic scenes, can also be used in airports, subways, parks, exhibition halls, museums, schools, banks, transportation, substations, dams and other scenes. Key features Support color video capture in black light environment Support one channel alarm input and output Support 2K/1080P/720P/VGA video resolution Built in microphone, support external audio output Support iCVS2.1 platform and GB28181 platform Support dual stream: one channel local storage and one channel network transmission Built in AI computing unit, can upgrade AI algorithms Support H.265/H.264 encoding Fully functional remote maintenance, support online upgrade |
| Item | TSC620-F |
| Sensor | 4.0 MP 1/1.8" CMOS |
| Video Encoding | H.265/H.264 |
| Video Resolution | 2K, 1080P, 720P, VGA |
| Frame Rate | 1~30FPS |
| Bit Rate | 64Kbps~10Mbps |
| Video OSD Overlay | Support time, name, custom overlay, can customize the font size |
| Fill-in Light | Support white light filling |
| Snapshot Coding Algorithm | JPEG |
| Snapshot Resolution | 2K, 1080P, 720P, VGA |
| Snapshot OSD Overlay | Support time, name, custom overlay, can customize the font size |
| Audio Input | Built-in pickup |
| Coding Algorithm | G711A/G711U |
| Audio Output | Support external speaker |
| Decoding Algorithm | G711A/G711U |
| Ethernet | 10/100M Ethernet, RJ45 female port |
| Alarm Input | Support 1 channel alarm input |
| Alarm Output | Support 1 channel alarm output |
| Function | License plate, vehicle color and model recognition algorithms |
| Power Input | 12V DC5.5*2.1 female port power supply, support 6 ~ 16V wide voltage |
| Size | 165mm × 85mm × 79mm |
| Installation | Bottom bracket or top lifting |
| Working temperature | -40 ºC ~ 70 ºC |
| Protection level | IP66 |
1. Are you a factory or a trading company? We are professional factory with nearly two decades experience, with 4000 square meters workshop and over 150 employees. We have the independent right to operate import and export to provide service to overseas customers directly, so there's no need to pay additional commission to agency and we could skip some steps to save more time. We have our own research and development of terminal and platform software, customization and secondary development is welcomed. Tsinglink has independent brand and provide OEM, ODM production as well. 2. What is your pricing strategy? Discount will be provided upon large quantity. For overseas markets, we will offer competitive price to support long-standing customers and distributors. 3. What is your minimum order quantity? Our minimum order quantity is 10 pcs for each model, but we accept small order as trial order. 4. How could I get a sample? Sample fee and freight charge will be listed on sample PI. Once our finance team confirms received your payment, sample and tracking number will be sent. 5. What's the payment terms? We accept TT (Telegraphic Transfer), Western Union etc as payment term for small order and L/C for larger order. 6. What's the delivery time? Usually 7-15 working days after received payment, but it depends on the order quantity. Estimated delivery time will be informed by sales before final payment. 7. What type of shipment will you use? We usually ship the products by express delivery to your door or by air freight to your nearest airport. If the order quantity is large, we may ship by sea. 8. How about quality control? ISO systems help our factory improve management level, ERP system can help us control the cost of procurement links effectively, so we can provide competitive price, new test equipments can do uninterrupted fatigue testing to ensure products using life. Pre-shipment inspection and third-party supervision are available. 9. Do you have agency for after-sales service? Sure. Our sales will instruct the installation of products and software. Please feel free to contact us if you meet any technical questions, we will help you work it out. 10. How can I be your sole-distributor? We have special policy for sole-distributor. Please contact our sales to get related files. Any further questions, welcome to contact our sales. |
