Bulk Production EPS Foam Waste Shredder with Belt Conveyor to Feed

Product Description

The EPS shredder works with a long conveying belt to convey the materials into hopper to crush them.The crushed materials will be blowed into big silo for further process.

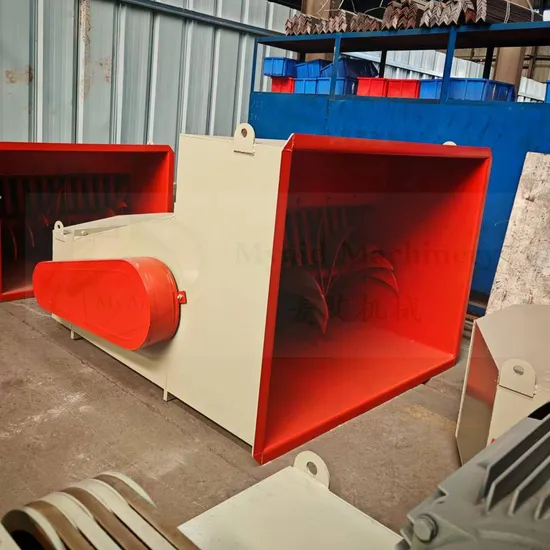

There are two horizontal shafts installed inside hopper by left and right layout.
The conveyor is belt type and it is 4000mm length at default.
The EPS shredder offer a solution to the problem of EPS foam disposal, which can reduce them to manageable sizes. Perfect for someone who has scrap EPS foam from protection cushions, post parcels and other fragile glass/ceramic ware transportation. This foam recycling crusher can crush the EPS blocks into small flakes of sizes from 5mm to 50mm.
Machine Advantage
The Continuous EPS crusher can crush various foam materials like EPS/XPS/EPO/PU/EPE etc.It works with two crushing shafts and it can work effectively to recyle.
The foam crushing machine can work with big capacity to crush foam materials.
The conveyor also gives users enough safety away from shredder.
1) Continuous for big capacity The foam crushing machine feed by belt type conveyor,so it can continuously feed and crush,it can greatly increase the crushing capacity and users always install big silo to store the crushed pieces.
2) Smaller size output scraps As there are two crushing shafts inside of crushing machine body,they are side by side to work,the foam will be crushed twice,it can output smaller size scraps than single shaft Continuous EPS crusher.
3) Safety The belt type conveyor can be improving safety for operator when feeding materials,people are more and more pay attetion to safety in some countries.The belt can keep works away from crushing shafts which may be dangerous to workers.
Hard teeth reducer + Copper Motor
Machine Parameter

Model	Inlet Size	Motor Power	Shaft Qty	BlowerPower	Capacity
1000	1000*800	7.5kw	2	3kw	500kg/h
1200	1200*800	11 kw	2	3kw	750kg/h
1500	1500*800	15 kw	2	3kw	1000kg/h

Machine Application
FAQ
Q: why users need conveyor ?
A: for safety and capacity and easy feeding. Too many benefits are there.
Q: How many shafts inside hopper ?
A: Two shafts.
