US$19.00-23.20
|
100 Pieces
(MOQ)
|
Basic Info.
Driving Method
LED Constant Current
Circuit Structure
Electronic Step-down Transformer
Certification
TUV, CE, RoHS, ISO9001, CCC, LVD, EMC, Bis, FCC, ENEC, CB, Ks, Kcc, Eac etc.
Power Supply Mode
Constant Current Source
Modulation System
Isolated 1-5V/1-10V/10V PWM/3-Timer-Modes Dimmable
In-Out
AC 90-305V Input, DC Output
Power Supply Voltage
AC85-265
Product Name

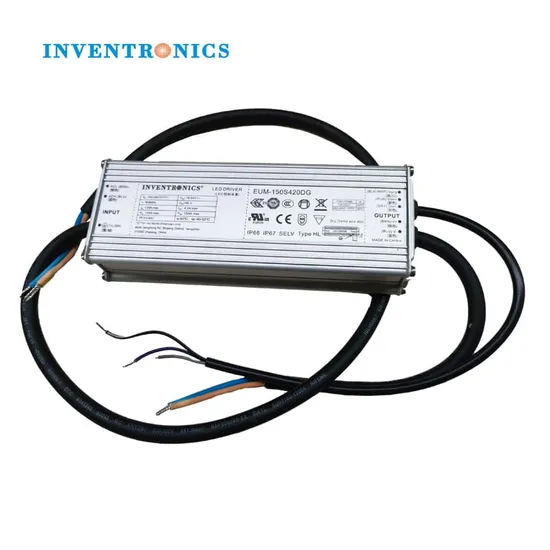

Inventronics 150W 24V 36V 48V Dimmable LED Driver
Adjustable Output Current
280-4200mA (Default 3150mA, 2A, 3A, 4A)
Output Voltage Range
18 ~ 54VDC (DC 24V 27V 30V 36V 40V 48V 50V 54V)
Dimming Functions
Isolated 1-5V/1-10V/10V PWM/3-Timer-Modes Dimmable
IP Class
IP66 / IP67 and UL Dry / Damp / Wet Location
Input Surge Protection
Dm 6kv, Cm 10kv
Efficiency
Super High Efficieny, up to 93%
Power Factor
0.99 at 120VAC; 0.96 at 220VAC
Protections
All-Around Protection: Ovp, SCP, Otp
Features
Compact Metal Case with Excellent Thermal Performa
Other Features
Class 2 & Selv Output
Applications
LED Street Lighting, Tunnel Lights, Stadium Lights
Delivery Time
3 to 60 Working Days Due to Models and Quantity
Shipping Way
by Sea, by Train, by Air, by Express DHL FedEx etc
Transport Package
25PCS Per Inner Tray, 100PCS Per Brown Carton
Specification
7.01"x2.36"x1.34" inches (178x60x34mm), 690g
Origin
Hangzhou, Zhejiang, China
Production Capacity
20000pieces/Month
Packaging & Delivery
Package Size
18.00cm * 7.00cm * 5.00cm
Package Gross Weight
1.500kg
Product Description
Product Parameters
Models:
| Adjustable Output Current Range | Full-Power Current Range (1) | Default Output Current | Input Voltage Range(2) | Output Voltage Range | Max. Output Power | Typical
Efficiency
(3) | Power Factor | Model Number (6) |
| 120Vac | 220Vac |
| 70-1050mA | 700-1050mA | 700 mA | 90~305 Vac/ 127~300 Vdc | 72~214 Vdc | 150W | 93.0% | 0.99 | 0.96 | EUM-150S105DG |
| 105-1500mA | 1050-1500mA | 1050 mA | 90~305 Vac/ 127~300 Vdc | 50~143 Vdc | 150W | 93.5% | 0.99 | 0.96 | EUM-150S150DG |
| 140-2100mA | 1400-2100mA | 2100 mA | 90~305 Vac/ 127~300 Vdc | 36~107 Vdc | 150W | 92.0% | 0.99 | 0.96 | EUM-150S210DG (4) |
| 280-4200mA | 2800-4200mA | 3150mA | 90~305 Vac/ 127~300 Vdc | 18 ~ 54 Vdc | 150W | 91.5% | 0.99 | 0.96 | EUM-150S420DG (4) |
Notes: (1) Output current range with constant power at 150W
(2) Certified input voltage range: UL, FCC 100-277Vac; otherwise 100-240Vac.
(3) Measured at 100% load and 220Vac input (see below "General Specifications" for details).
(4) SELV Output.
(5) To order BIS approved model, please use suffix "DB" in place of "DG" (ex: EUM-150S105DB).
Product Description
Fetaures: • Compact Metal Case with Excellent Thermal Performance
• Full Power at Wide Output Current Range (Constant Power)
• Adjustable Output Current (AOC) with Programmability
• Isolated 1-5V/1-10V/10V PWM/3-Timer-Modes Dimmable
• Output Lumen Compensation
• Input Surge Protection: DM 6kV, CM 10kV
• All-Around Protection: OVP, SCP, OTP
• Waterproof (IP66 / IP67) and UL Dry / Damp / Wet Location
• SELV Output
• TYPE HL, for use in a Class I, Division 2 hazardous (Classified) location
• 5 Years Warranty
Descriptions: The EUM-150SxxxDG series is a 150W, constant-current, programmable IP67 LED driver that operates from
90-305Vac input with excellent power factor. It is created for many lighting applications including high bay, high
mast and roadway, etc. The high efficiency of these drivers and compact metal case enables them to run cooler,
significantly improving reliability and extending product life. To ensure trouble-free operation, protection is
provided against input surge, output over voltage, short circuit, and over temperature.
Detailed Photos
