Economic Working Boiler Tube Sheet Flange Hydraulic High-Speed Drilling CNC Milling Machine

Product Description

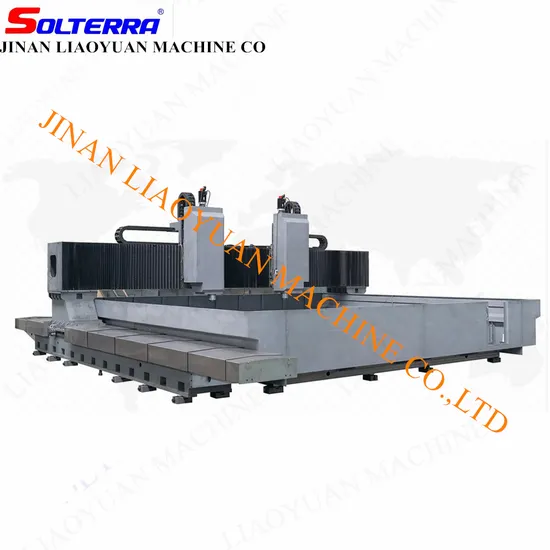

Economic Working Boiler Tube Sheet Flange Hydraulic High-Speed Drilling CNC Milling Machine
MACHINE APPLICATION
1.Engineered specifically for the meticulous drilling processing of tube plates, clapboards, and flanges, this machine is an indispensable asset in the petrochemical, boiler, and wind power flange industries. It also excels in creating joint plates for construction, bridges, and iron towers, among other applications.
2. Boasting unparalleled efficiency and unwavering working accuracy, this machine is designed for ease of operation and consistent, high-performance results.
MACHINE FEATURES
1. Our machine bed boasts dual heavy-load linear roller guide pairs, ensuring unparalleled stability and precision on both sides.
2. The cross beam of the gantry is fitted with two advanced movable slides, enhancing versatility and operational efficiency.
3.Our machine comes integrated with a state-of-the-art hydraulic system, facilitating seamless hydraulic balance for the vertical ram and efficient hydraulic cutter release for the spindle.
4.Featuring the renowned FAGOR8055 CNC system from Spain, it is equipped with an RS232 interface and a modern LCD screen for user-friendly operation.
5.It incorporates a chain-plate type automatic chip conveyor and a chip collection trolley, ensuring effortless and efficient chip management.
6. We select key machinery, hydraulic pressure, and electric components from esteemed brands both domestically and internationally.

Product Parameters

Main technical specifications:

Item	Name	Value
Maximum Plate Size	L x W	3000×3000 mm
	Maximum Thickness	250mm
Work Table	T Slot Width	28 mm(standard)
	T Slot Direction	Y Axis
	Loading Weight	3 tons/square meter
Drilling Spindle	Maximum Drilling Diameter	φ80 mm
	Drilling spindle's Rod Length vs. Hole diameter	≤10,(Crown Diamond)
	Maximum Tapping screw	M30
	RPM	0~3000 r/min
	Spindle Tape	BT50
	Spindle motor power	37kW
	Maximum Torque n≤750r/min	470Nm
	Distance from Spindle bottom surface to the worktable	280~780 mm (adjustable as per material thickness)
Gantry Longitudinal Movement (X Axis)	Max. Stroke	2000 mm
	Movement speed along X axis	0~16m/min
	Servo motor power of X axis	2×3.3kW
Spindle Transversal Movement (Y Axis)	Max. Stroke	3000mm
	Movement speed along Y axis	0~16m/min
	Servo motor power of X axis	2.7kW
Spindle Feeding Movement (Z Axis)	Maximum distance between two drilling headstocks	2000 mm
	Feeding speed of Z axis	0~10m/min
	Servo motor power of Z axis	4.3kW
Positioning accuracy	X axis,Y axis	0.08mm/full travel
Repeatable positioning accuracy	X axis,Y axis	0.05mm/full travel
Hydraulic system	Hydraulic pressure/Flow rate	6MPa /22L/min
	Hydraulic pump motor power	5.5 kW
Pneumatic system	Compressed air pressure	0.5 MPa
Scrap removal and Cooling system	Scrap removal type	Plate chain
	Scrap removal Nos.	2
	Scrap removal speed	1m/min
	Motor Power	2×0.75kW
	Cooling way	Inner cooling + Outside cooling
	Max. Pressure	2MPa
	Max. Flow rate	60L/min
Electronic system	CNC control system	Siemens 828D
	CNC Axis Nos.	5
	Total power	About 65kW
Overall Dimension	L×W×H	About 6.8×5.7×4.1m
Machine weight		About 28t
