Basic Info.
Usage
Solar/Heat Pump/Gas/Electric Water Heater
Type
Heat Pump Buffer Tank
Features
Food Grade, High Efficiency, Durable, etc.
Warranty
up to 3 Years Tank Warranty
Application
High Rise Building Systems and Families
Transport Package
Carton Packaging
Specification
50-500L, Custom Storage Capacity
Production Capacity
500000 PCS/Year
Product Description

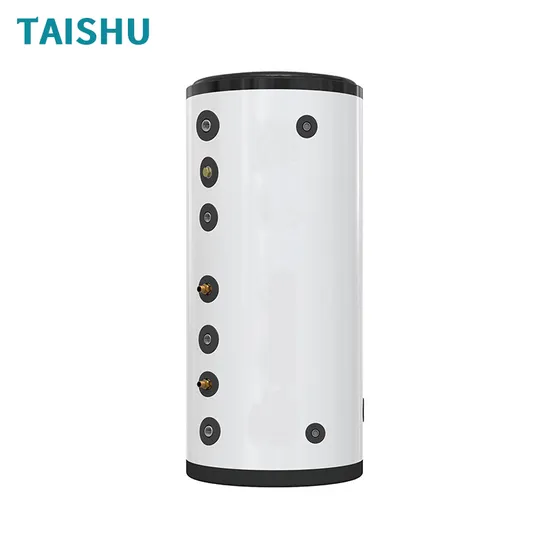

Product Description Custom Capacity Air Source All in One Air to Water Heat Pump Hot Water Heater Tank Buffer Tank
Features:
• As simple as installing an air conditioner;
• The product is suitable for independent systems such as high-rise buildings and families;
• Not affected by climate, weather, building conditions, etc.;
• Adopt diamond armor to thicken the inner tank and imported enamel glaze, which is anti-explosion, anti-solvent, acid and alkali resistance, and has a long service life;
• Select high-efficiency outer plate heat exchange structure, solve problems such as corrosion and water leakage, and make the operation of the unit more stable;
• Auxiliary electric heating can also be used for heating in severe cold areas.
Product Parameters
| Model | PF-100L | PW-200L/coil | PF-200L | PW-300L | PF-300L | PW-500L | PF-500L |
| Type | Buffer Tank | Water Tank | Buffer Tank | Water Tank | Buffer Tank | Water Tank | Buffer Tank |
| Volume/Liter | 120 | 200 | 200 | 300 | 300 | 500 | 500 |
| Inner tank Materials | SUS304 | SUS304 | SUS304 | SUS304 | SUS304 | SUS304 | SUS304 |
| Inner tank thickness/mm | 1.0 | 1.2 | 1.2 | 1.4 | 1.4 | 1.5 | 1.5 |
| Housing materials | Color steel plate | Color steel plate | Color steel plate | Color steel plate | Color steel plate | Color steel plate | Color steel plate |
| Housing thickness | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 |
| Coil materials | / | SUS304 | / | SUS304 | / | SUS304 | / |
| Coil type | / | Corrugated Pipe | / | Corrugated Pipe | / | Corrugated Pipe | / |
| Coil size | / | φ25mm*20m | / | φ32mm*25m | / | φ32mm*20m/φ32mm*20m | / |
| Coil thickness/mm | / | 0.3 | / | 0.3 | / | 0.3 | / |
| Coil area/m | / | 2.2 | / | 3.5 | / | 2.8/2.8 | / |
| Cold Water Inlet | / | G3/4" M | / | G3/4" M | / | G1" F | / |
| Hot Water Outlet | / | G3/4" M | / | G3/4" M | / | G1" F | / |
| Circulation inlet 1 | G1" F | G1" M | G5/4" F | G5/4" F | G5/4" F | G5/4" M | G5/4" F |
| Circulation outlet 1 | G1" F | G1" M | G5/4" F | G5/4" F | G5/4" F | G5/4" M | G5/4" F |
| Circulation inlet 2 | G1" F | / | G5/4" F | / | G5/4" F | G5/4" M | G5/4" F |
| Circulation outlet 2 | G1" F | / | G5/4" F | / | G5/4" F | G5/4" M | G5/4" F |
| Water return hole | / | G3/4" F | / | G3/4" F | / | / | / |
| Water filling hole | G3/4" F | / | G3/4" F | / | G3/4" F | / | G3/4" F |
| Exhaust vent | G1/2" F | / | G1/2" F | / | G3/4" F | / | G3/4" F |
| Electric heater hole | G1" F | G1" F | G1" F | G1" F | G1" F | G1" F | / |
| Electric heater | 3kW | 3kW | 3kW | 3kW | 3kW | 3kW | / |
| Electric heater controller | / | / | / | / | / | / | / |
| Temperature sensor | G3/8" F | G3/8" F | G3/8" F | G3/8" F | G3/8" F | G3/8" F | G3/8" F |
| Magnesium rod hole | / | G3/4" F | / | G3/4" F | / | G3/4" F | / |
| P/TP valve hole | / | G3/4" F | / | G3/4" F | / | G3/4" F | / |
| Safe valve hole | G1/2" F | / | G1/2" F | / | G1/2" F | / | G1/2" F |
| Sewage outlet | G3/4" M | G3/4" M | G3/4" M | G3/4" M | G3/4" M | G3/4" M | G3/4" M |
| Pressure/bar | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Insulation materials | Polyurethane | Polyurethane | Polyurethane | Polyurethane | Polyurethane | Polyurethane | Polyurethane |
| Insulation thickness/mm | 50 | 50 | 50 | 45 | 45 | 50 | 50 |
| Product size/mm | φ470*1010 | φ540*1500 | φ540*1500 | φ540*1750 | φ540*1750 | φ700*1850 | φ700*1850 |
| Packing size/mm | 540*540*1100 | 610*610*1600 | 610*610*1600 | 610*610*1850 | 610*610*1850 | 780*780*1950 | 780*780*1950 |
| NW/kg | 22 | 42 | 37 | 61 | 54 | 89 | 77 |
| GW/kg | 25 | 46 | 41 | 66 | 59 | 95 | 83 |
→ More Water Tanks Requirements or Any Questions Please Click to Contact Us. Detailed Photos
Project Case With food grade SUS304 material, high efficiency, and stable quality, our water tanks are suitable for various types of indepent building systems and families, such as villas, heat pumps, heating, swimming pools, etc.
Through 15 years of technological innovation and strategic market expansion, TAISHU ENERGY has become one of the most influential brands of water tanks in china. Now TAISHU is committed to development of the international market, our products are sold to more than 60 countries, our stainless steel solar water tanks are popular in Europe, and squre water tanks won high praise in Africa and South Asia.
Welcome to Know More About TAISHU ENERGY!
Company Profile Our company specializes in the production of various types of water tanks for 15 years, the main products are buffer water tank, air energy water tank, coil water tank and heat water storage tank, fire water tank, drinking water tank, suitable for floor heating, radiator, ground source heat pump, gas boiler and central air conditioning supporting use, other can also be used for home bathing and fire projects.
FAQ Q1: How much is a water tank?
A1: With competive price for you.
Q3: Do you also provide other kind of water tanks?A3: Square water tanks including fiberglass material, galvanized material, and stainless steel material; Round water storage tanks; Solar Water tanks and Buffer Tanks on demand.Q4: Wonder if you accept small orders?A4: Feel free to contact us, we accept your small order.Q5: Can you do OEM for me?A5: We accept all OEM&ODM orders, just feel free to contact us and give me your design.Q6 When can I get the quotation?A6: We have professional sales team, usually quote you within 24 hours after we get your inquiry.
>>
