DD40E/2 Fincm Cnc Automatic Multi Hole Drilling Machine

Product Description

Product Description

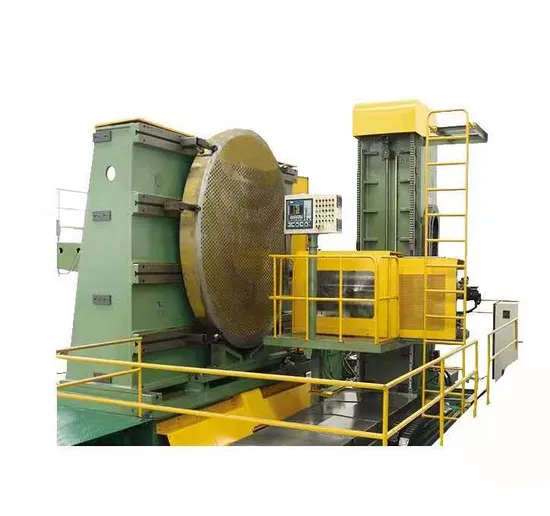

DD40E/2 FINCM CNC Double-Spindle Horizontal Deep Hole Hydraulic Drilling Machine 4000mm*800mm (Diameter*Thickness)
This equipment is mainly composed of longitudinal sliding table, vertical column sliding table, double-spindle feed sliding table, worktable and bending plate, hydraulic system, cooling system, automatic lubrication system, electrical system, chip conveyor, etc.
This DD40N/2 is mainly used for processing the holes on the tube plate of the shell and tube heat exchanger used in the petroleum, chemical, pharmaceutical, thermal power station, nuclear power plant and other industries. The maximum diameter of the workpiece is φ4000mm (need to be turned 180°), and the maximum drilling The depth is 750mm. The machine tool has high efficiency and good accuracy. The surface roughness of the drilling can reach Ra6.3~Ra3.2, the precision of the hole diameter can reach IT9~IT10, and the straightness of the hole is 0.3-0.8mm/800mm.
Equipment advantages:
1. This machine is a horizontal deep hole drilling machine.
2. The X, Y, and Z axes of the machine tool are guided by linear roller guides, which have extremely high load-bearing capacity and superior dynamic response performance, no backlash, and high motion accuracy.
3. The worktable of this machine tool is separated from the bed, and the clamping workpiece is not affected by the vibration of the bed. The working table is a casting with stable precision. The bending plate holding the workpiece is divided into two pieces, and the spacing is adjustable to adapt to workpieces of different diameters.
4. This machine tool has two spindles, which can work at the same time, and the efficiency is nearly double that of a single-spindle machine tool.
5. This machine is equipped with a flat chain type automatic chip conveyor, which is fully automatic.
6. This machine tool is equipped with an automatic lubrication system, which can regularly lubricate the parts that need lubrication such as guide rails and lead screws to effectively ensure the stable operation of the machine tool and increase the service life of each component.
7. This machine tool numerical control system adopts FAGOR8055 numerical control system, equipped with electronic handwheel, which is convenient for operation and management.
8. This machine tool has a variety of detection functions, including: 1) Spindle feed torque detection. 2) Spindle motor torque detection. 3) Flow detection. 4) Pressure detection. 5) Liquid level detection. 6) Temperature detection.
9. The machine tool's linear guide pair, ball screw pair, servo motor and its driver, planetary reducer, internal cooling joint (for gun drill), CNC system, hydraulic pump, valve and other machine tools have very high reliability. Comparable to imported machine tools, with fewer failures and high start-up rate. Detailed Photos
Main Technical Specifications:

Parameter name	Project		Parameter value
Processing range	Maximum workpiece diameter		Φ4000mm
	Borehole diameter		Φ14~φ40mm(BTA drill)
	Maximum drilling depth		800mm
Drilling head	Quantity		2
	Spindle center distance (adjustable)		170~220mm
	Spindle speed		200~2500r/min
	Spindle variable frequency motor power		2×15kW/20.5kW
Longitudinal slide movement (x-axis)	Travel		4000mm
	Maximum movement speed		4m/min
	Servo motor power		4.4kW
Vertical slide movement of column (Y-axis)	Travel		2000mm
	Maximum movement speed		4m/min
	Servo motor power		7.7kW
Movement of double spindle feed slide (Z axis)	Travel		900mm
	Feed rate		0~4m/min
	Servo motor power		2.6kW
Hydraulic system	Hydraulic pump pressure / flow		2.5~4MPa,25L/min
	Motor power of hydraulic pump		3kW
	Capacity of hydraulic oil tank		120L
Cooling system	Cooling pump pressure / flow		6.5MPa,2×200L/min
	Cooling pump motor power		2×22kW
	Cooling tank capacity		3000L
	Industrial refrigerator power		14kW
	Flux of magnetic roller paper tape filter		2×200L/min
	Filtration accuracy		25μm
Chip removal	Chip conveyor type		Flat chain
	Chip removal speed		2m/min
	Chip removal motor power		0.75kW
	Pump motor power / flow		2×1.5kW/2×200L/min
electrical system	Numerical control system		Siemens 828D
	Number of NC axes		3
	Total power of motor		About 125kW
Machine tool dimensions	Length × width × height		About 14×7×6m
Machine weight			About 85t
Accuracy	X-axis positioning accuracy		0.06mm/ overall length
	X-axis repeat positioning accuracy		0.03mm
	Positioning accuracy of y-axis		0.06mm/ overall length
	Y-axis repeat positioning accuracy		0.03mm
	Tolerance of hole spacing		±0.10mmDrilling face
			±0.3-0.8mm/800mmDrill out
	Hole roundness		0.02mm
	Aperture accuracy		IT9~IT10

Working temperature: 0ºC~40ºC
power:3 phase 4 wire; voltage:380±10%V ; frequency:50HZ
List of the Key Outsourced Components:

NO	Name	Brand	Country
1	linear guide rail	HIWIN/PMI	Taiwan(China)
2	Numerical control system	Siemens	Germany
3	Feed servo motor	Siemens	Germany
4	Spindle servo motor	Siemens	Germany
5	Grating ruler	FARGOR	Spain
6	Oil pump	JUSTMARK	Taiwan(China)
7	Hydraulic valve	ATOS/YUKEN	Italy / Japan
8	Planetary gear reducer	APEX	Taiwan(China)
9	Switch, button, indicator light	Schneider/ABB	France / Germany
10	Automatic lubrication system	HERG	Japan

Note: The above is our fixed supplier. If the supplier can not supply the components in case of any special matter, we will adopt the components with the same level, but the quality is no worse than the above.

Other Products
Company Profile
Shandong FIN CNC MACHINE CO., LTD. is always focusing on our ultimate goal - to secure and increase our customer's productivity - has made us the leader in China market in the manufacture of machines for processing angle bar, beam channel profiles, steel plates, tubesheet and flanges, mainly serving for fabricating iron towers, steel structure, heat exchangers, boilers, bridges, and trucks.Strong R & D center with 30 engineers team, 24 years of experience from year 1997, 280 staff, plant area about 270,000 sqm., very harsh quality control of every component and the whole machine, about 40 million US dollars sales turnover per year.
FIN CNC machines' market share in China is around 70% and exported to 50+ countries across globe market. All top ranked tower manufacturers, steel structure fabricators and power station makers, bridge/railway manufacturers, truck makers are our clients.
Main products: CNC Angle Line, CNC Beam Drilling Sawing Machine, CNC Plate Drilling Machine, CNC Rail Processing Machine, CNC Tubesheet Flange Drilling Machine, Truck beam plate punching machine, etc..One measure of the outstanding quality of our machines is their longevity: many FIN machines have been in operation for more than 17 years! Many clients are continually placing repeated orders which verified well our machines' perfect quality and reliable performance.
The company drafted many China national standards for CNC angle line machine and CNC beam drilling sawing machine and CNC plate drilling machine.
Product Process Control
Cooprative Supplier
Sales Network

Our Service
FAQ:
1. When can you arrange shipment?
For machines available in stock, the shipment can be arranged within 15 days after getting advance payment or L/C;
For machines non available in stock, the shipment can be arranged with 60 days after getting advance payment or L/C.
2. What can you do if my machines have problems?
1) We can send you free components if machines are in warranty period;
2) 24 hours service on line;
3) We can assign our engineers to serve you if you want.
3. Do you provide machine operation training?
Yes. We can send professional engineers to the working site for machine's installation, commissioning and operation training.
4. Which machine model shall I choose when I purchase from you?
Please share us your material size and your processing request, then we will recommend our machine most suitable and most cost effective for your work demand.
5. What's your machine's market share in China?
Our market share in China is about 70%+, and we've exported to 50+ countries across the globe market, since year 1998.

---
