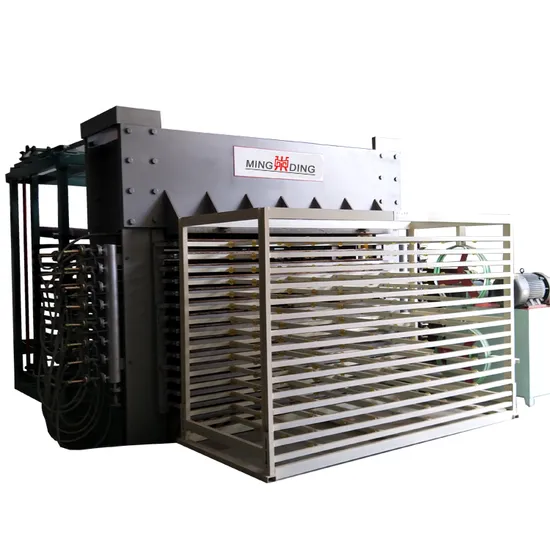

Heavy Duty High Efficient Hot Press Plywood Produce Machine Wood Board Making

Product Description

Hot press is one of the most important machines in the production of wood-based panels, which directly determines the production efficiency and quality of wood-based panels. After years of research and development, Mingding D-tech has launched a new generation of MDHP series. No matter from the frame of the steel plate, hot plate, cylinder, hydraulic station and other control systems are through the quality inspection department layer by layer.
Our vision is that we don't need after-sales service because the quality of our products is good enough.

model	ULT-MDHP500-15
Steel material	Q235B	High pressure pump	25ml
Structure steel thickness	40mm	Motor of high pressure pump	18.5kw
The way of structure combination	Separate frame	Hot platen material	Q235A
The way of feed	Cross	Close time	25 seconds
The high of the Up and down beam	900mm	Pressure	500TONS
Middle beam high	400mm	Hot platen Manufacturer	Kunshan brand
the space of each hot platen	70mm	Cylinder Manufacturer	Wuxi brand
The column width	400mm	Hydraulic system	1set
Cylinder diameter	360mmx2	Control system	PLC(SIMENS)
Stroke	1050mm	Total weight	33 TONS
Hot platen size	1370x2700x42mm/52mm
