Product Details
Product Description
Product Description

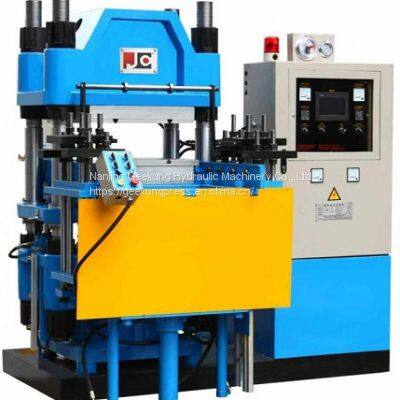

Rubber&Silicone Vulcanizing Molding Press Machine is suitable for the production of making packing O-rings,keyboards,rubber medical products,etc.
Work flow:
Initial state→Put material in mold→Start program→Ejector cylinder reset→Mold move in→Fast mold closing→Slow lock,pressing→Exhaust→Curing→Mold open→Mold move out→Ejector cylinde works to separate products from mold →Take out the finished product
Technical specification:
Model
| JC-XLB
100T
| JC-XLB
200T
| JC-XLB
300T
| JC-XLB
350T
| JC-XLB
400T
| JC-XLB
500T
|
Tonnage
| 100T
| 200T
| 300T
| 350T
| 400T
| 500T
|
Max.system pressure
| 21 Mpa
| 21 Mpa
| 21 Mpa
| 21 Mpa
| 21 Mpa
| 21 Mpa
|
Clamping stroke(mm)
| 280
| 300
| 300
| 300
| 300
| 300
|
Rapid clamping
| ≥60mm/s
| ≥60mm/s
| ≥50mm/s
| ≥50mm/s
| ≥50mm/s
| ≥50mm/s
|
Platen size(mm)
| 450x450
500x500
| 510x540
600x550
| 700x650
| 700x700
| 900x800
| 700x700
800x800
950x800
|
Max. daylight
| 350 mm
| 350mm
| 350mm
| 350mm
| 350mm
| 350mm
|
Max.temperature(℃)
| 250
| 250
| 250
| 250
| 250
| 250
|
Motor power(KW）
| 5.5
| 7.5
| 11
| 11
| 13
| 13
|
Heating power(KW)
| 9.6
| 18.6
| 20.6
| 20.6
| 27.8
| 27.8
|
Size (LxWxH:cm)
| 175x190x170
| 210x230x210
| 230x280x230
| 230x280x250
| 270x410x280
| 270x410x310
|
Oil tank capacity(L)
| 270
| 320
| 400
| 400
| 500
| 600
|
Notes: the form only list out the normal standard model, more special models can be customized to order.
Rubber Compression Molding Machine is one of our main products,"Geekung" is now the famous brand in China for rubber compression molding press machine,
made with premium components and strict QC management,featuring high quality&reliable operation.
Our rubber compression molding press machines are being sold very popular across China,we are now also expanding our overseas market.
>>
