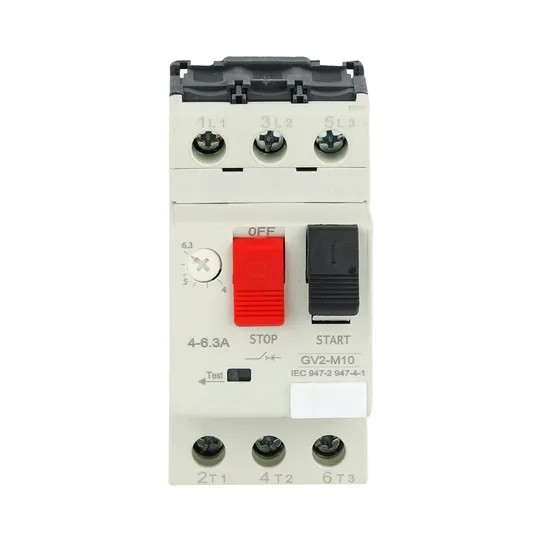

Gv2m08 Motor Protection Breaker CE Certified

Product Description

Product Description GV2 series electric motor protection circuit breakeruses the modular design the contour is artistic, the volume is smalbreakes protects, inside sets Hot relay, the function is strong, theversatility is good. The GV2 series conforms to lEC60947.2 andIEC60947-4.1 as well as the EN60947-1 standard. The switch andthe contact device may compose the electric motor is direct starts.The GV2 series outer covering protection rankmay achieve lP65. This series pooled three types model product: GV2-RS is theelectric motor belt thermomagnetism protection circuit breaker whichthe changover switch con-trols; GV2-LS,LE is the electricmotr belt magnetism protection circuit breaker which the change-over switch controls(does not bring hot protection).
Features - High Breaking Capacity
- Flammablity: UL94V0
- Current adjustion
- Long life-span
- CE certificate

Product Parameters

Type	The standard power of three-phase electromotor kW						Rated current adjustable range
	220V	380V	415V	440V	500V	660V
GV2-M01	-	-	-				0.1-0.16
GV2-M02	-	-	-				0.16-0.25
GV2-M03	-	-	-				0.25-0.4
GV2-M04	-	-	-			0.37	0.4-0.63
GV2-M05	-	-	-	0.37	0.37	0.55	0.63-1
GV2-M06	-	0.37	-	0.55	0.55	1.1	1-1.6
GV2-M07	0.37	0.75	0.75	1.1	1.1	1.5	1.6-2.5
GV2-M08	0.75	1.5	1.5	1.5	2.2	3	2.5-4
GV2-M10	1.1	2.2	2.2	3	3.7	4	4-6.3
GV2-M14	2.2	4	4	4	5.5	7.5	6-10
GV2-M16	3	5.5	5.5	7.5	7.5	9	9-14
GV2-M20	4	7.5	9	9	9	11	13-18
GV2-M21	5.5	11	11	11	11	15	17-23
GV2-M22	5.5	11	11	11	15	18.5	20-25
GV2-M32	7.5	15	15	15	18.5	26	24-32

Auxiliary contacts			Code	The types of contacts			Installation place
			AE1	1NO,1NC			The front of breaker(only 1PCS can be installed)
			AE11	1NO+1NC
			AE20	2NO			The left of breaker(4PCScan be installed)
			AN11	1NO+1NC
			AN02	2NC
Fault signal contacts + auxiliary contacts			AD1010	Constant-open trouble NO NC
			AD1001
			AD0110	Constant-closed trouble NO NC
			AD0101
Short circuit contacts			Am11	1NO+1NC

---
