Embedded industrial control computer Linux/Windows system industrial control host TKUN Tiangong Control

Product Details

Product Details

Product Description

Product Description

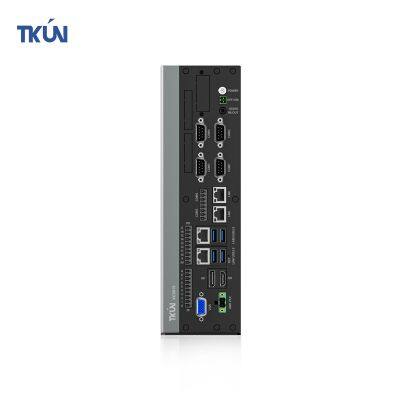

XC9019Dual port embedded industrial control computer
Industrial computer
Brand
TKUN

Model
XC9019
Motherboard
function
Mainboard
TKUN industrial motherboard

CPU
I3-6th(optional i5-6th/i7-6th)


Dual-core and four threads 3.2GHz


Cache 3 MB Intel® Smart Cache

Integrated graphics
Intel® HD Graphics 530

System
Support Windows7/8.1/10/11, Linux

RAM
4G (optional 8G/16G/32G/64G)

SSD
128G(optional 256G/512G/1T/2T/4T)

LAN
LAN*4 10M/100M/1000M/2.5Gbps adaptive

USB
USB3.0*4

COM
RS232/485/422*2

HD
HD*1

DP
DP*1

DI/DO
DI*8


DO*8

AUDIO
Audio in/out*1

Extensible
COM*4/CAN*2 (choose one), LAN*2
Wireless network
Wireless card
Wifi standard with none (expandable)
Open close
ON/OFF
Power*1,ON/OFF*1 (external control can be supported)
Power input
AC/DC
DC9-36V
Watchdog
Watch dog timer
0-255 seconds, providing watchdog routine
Product Power
Power
≤20W
Environment
Operating
temperature/humidity
-20℃ to +70℃/ 0-80% relative humidity, no condensation

Storage
temperature/humidity
-40℃ to +80℃/0-90% relative humidity, no condensation

Vibration resistant
30Hz, X, Y, Z axis 60 minutes each

Esd protection
Class 3, contact discharge ± 6KV, air discharge ±8KV

Test standards
IEC60601
Product service
After service
one-year warranty and lifelong maintenance

Customized service
OEM/ODM is available for material, appearance, dimensions,
wide temperature, outdoor highlight, wide voltage, etc.
