US$500.00-80,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Application
Liquid with Suspended Solids, Powder, Liquid with Suspended Solids, Powder, Granules
Application Area
Chemical, Daily Chemical, Engineering & Construction
Certification
CE, CE, ISO
Cooling Method
Water Cooling
Heating Method
Thermal Oil Heating
Main Material
Alloy Steel, Aluminum, Carbon Steel, Stainless Steel
Mixing Capacity
1000L & Above
Operating Type
Cycle Operating
Drive
by ABB Inverter or High/Low Speed
Mixing Time
8-15minute/Batch
Material Mixed
PVC/WPC/TPE
Manufacturing Period
20 Workdays
Electrical Component
Siemens, Omron, Schneider, FUJI, etc.
Heating Mode
by Electrical and Oil
Cooling Mode
by Circling Water
Transport Package
Plastic Film and Wooden Box
Specification
Capacity upto 2200kg/hr
Production Capacity
30 Sets/Month

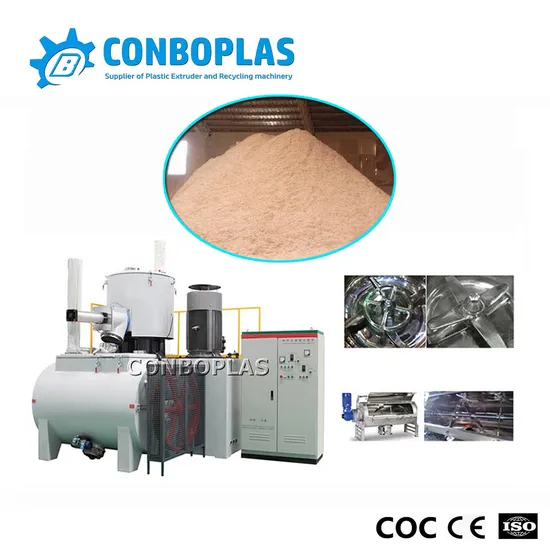

Product Description
Application:
Suitable for plastics, rubber, chemical and food industry, for power or granulate material blending, coloring and drying. Typical application includes: production of PVC dry blend, filling and modification of plastics, pre-mixing of compounding process and premix of wood-plastic Composites.
Features:
All important parts (bow, mixing tool,contorl) are manufactured in our company, which ensure the quality of machine.
All material in contact with product is SUS304 or aluminum alloy and the product will not be contaminated.
High cooling efficiency, short minxing time, easy and convenient to clean high output.
Mixing tool can be designed according to different application.
Mixing tool coated with wear-resistant material, which can increase service life and past dynamic and balance test, runing smoothly.
Rapid, perfert after-sales service.
| Model/Item | Total volume (L) | Effective volume (L) | Output
(kg/h) | Shaft speed (rpm) | Motor power (kw) | Unload method | Weight
(kg) |
| SRL-Z500/1000 | 500/1000 | 375/660 | 800-1000 | 430/860/80 | 55/75/15 | PNEUMATIC | 7800 |
| SRL-Z500/1600 | 500/1600 | 375/1024 | 800-1000 | 430/860/80 | 55/75/18.5 | PNEUMATIC | 8200 |
| SRL-Z800/2000 | 800/2000 | 560/1280 | 1300-1500 | 330/660/60 | 83/110/18.5 | PNEUMATIC | 9500 |
| SRL-Z800/2500 | 800/2500 | 560/1600 | 1300-1500 | 330/660/60 | 83/110/22 | PNEUMATIC | 10500 |
| SRL-Z1000/3000 | 1000/3000 | 750/2240 | 1800-2000 | 325/650/56 | 110/160/37 | PNEUMATIC | 12000 |
| SRL-Z1300/4500 | 1300/4500 | 1000/3300 | 2000-2500 | 300/600/50 | 132/200/55 | PNEUMATIC | 14000 |
OPTIONAL EQUIPMENTS:
CONTACT INFORMATION:
Manager: BOSH LEUNG (MR.)
Company website: http://conboplas1986.en.made-in-china.com
Address: Leyu Development Zone, Zhangjiagang city, Jiangsu Province, China.
>>
