50~60m3/H Js1000 Twin Horizontal Shaft Concrete Mixer Price

Product Description

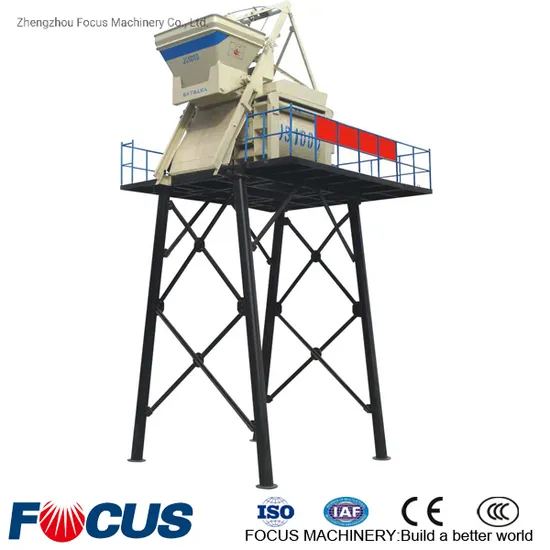

50~60m3/H Js1000 Twin Horizontal Shaft Concrete Mixer
parameters
50~60m3/H Js1000 Twin Horizontal Shaft Concrete Mixer:

Model parameter		JS500	JS750	JS1000	JS1500	JS2000	JS3000	JS4000
Discharge vol.(L)		500	750	1000	1500	2000	3000	4000
Charging vo.(L)		800	1200	1600	2400	3200	4800	6400
Output capacity(m³)		25	35	50-60	75-90	120	180	240
Aggregate size(mm)		80
Working circle(s)		60
Discharge height(m)		1.5-4.1 adjustable
Mixing blade	Speed	31r/min		19.5r/min			21r/min
	Quantity	2x7		2x8			2x10
Mixing motor		18.5kw	30kw	2x18.5kw	2x22kw	2x37kw	2x55kw	2x75kw
Lifting motor		5.5kw	7.5kw	11kw	18.5kw	-	-	-
Pump motor		0.75kw	1.1kw	3kw	3kw	-	-	-
Weight(kg)		4000	5500	8700	9880	10960	11130	13500
Dimension(LxWxH) mm		3030x2300x2680	4550x2250x2450	4640x2250x2250	5058x2250x2440	3810x2480x1710	4220x2620x1910	4450x3050x2380

Product Overviews
Why would our clients choose FOCUS concrete mixer?
FOCUS JS series of twin-shaft compulsory concrete mixer has the strong mixing ability with uniform mixing and high production output. Mixing paddles, arms and blades are made of special high chromium and high manganese alloy materials. The mixing shafts adapt anti-binding technology to prevent the cement from binding on the shafts. Shaft seals use multi-sealed structures to effectively prevent the slurry leakage. Lubricating system of the concrete mixer supplies oil to the four shaft-end respectively with four pump cores, without diverter valve in order to avoid unnecessary blocking, saving much less maintenance work.
Successful cases
Our 50~60m3/H Js1000 Twin Horizontal Shaft Concrete Mixer have been purchased, installed and operated all over the world:
Packaging&Shipping
Our50~60m3/H Js1000 Twin Horizontal Shaft Concrete Mixer have been delivered /distributed to the world with high reputation, it'll be such a great honor if you can join us
Certifications

---
