Current to PWM Signal Converter ISO A6-P1-D1-Q1

Product Details

Product Description

Product Description

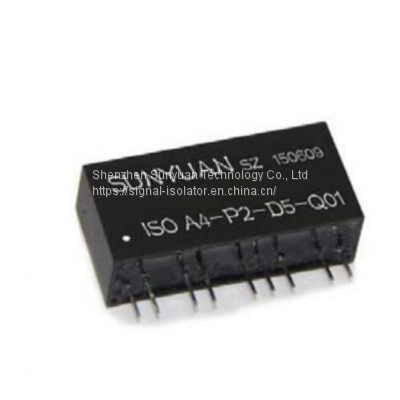

current to PWM signal converter ISO A6-P1-D1-Q1
Features:
*4-20mA/0-10v to PWM signal differ sensitively,response quickly.
*High linearity in full range
*Auxiliary power,signal input,output 2500VAC three isolation.
*Auxiliary power:5V,12V,15V or 24V DC single power supply
*low cost ultra small ,SIP-12 comply to UL94V-0 standard retardant package.
*Strong ability against EMC and high frequency signal space inference.
*Industrial temperature range:-40-+85 degree.
Typical application:
Conversion,isolation,long transmission on analog,
PLC control on industrial field and frequency converter.
Selection control Automatically
control on motor in industrial field and control on adjusting light.
Impedance on GND interference.
Control on selecting temperature of industrial boiler automatically.
Form PWM AD converter.

Accuracy	0.5%
Auxiliary power	DC5v,12v,24V,+-5%
Operation temperature	-40 -+85degree
Operation humidity	10-90%(No condensation)
storage temperature	-55-+105degree
storage humidity	10-95%/ no condensation)
Error	less than 0.5%
Isolation	signal input/output /auxiliary
insulated resistance	more than 20Mohm
Withstanding voltage	signal input/output /auxiliary power
	2500VAC,50Hz,1minute,leakage current:1mA
Impact resistant voltage	1KV,1.2/50us(p-p)

---
