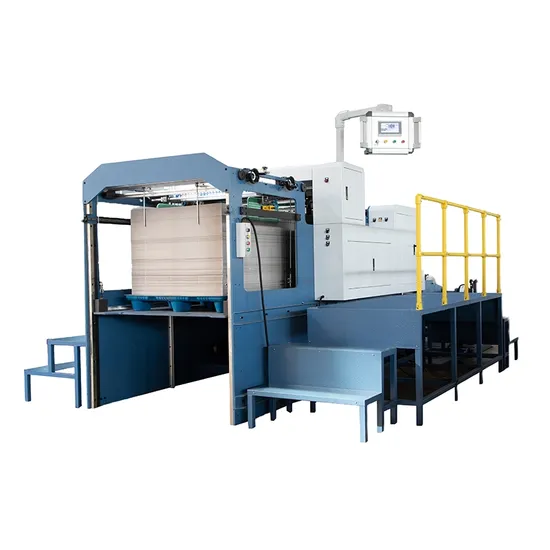

Paper Mill C2s Glossy Art Paper Roll to Sheets Cutting Slitting Machine

Product Description

Paper Mill C2s Glossy Art Paper Roll to Sheets Cutting Slitting Machine
Product Description: Our Paper Mill C2s Glossy Art Paper Roll to Sheets Cutting Slitting Machine is a high-performance machine tailored for paper mills working with C2s glossy art paper rolls. It features advanced cutting and slitting mechanisms that ensure accurate and efficient conversion of the paper rolls into sheets. The machine's design and construction are optimized to handle the glossy surface of C2s art paper, providing consistent sheet quality and excellent finish. Its reliable operation and easy maintenance make it a practical choice for paper mills looking to enhance their production capabilities for glossy art paper sheets.
Feature: 1.Machine Rack: The machine rack adopt Shanghai BaoSteel company as steel raw material. 16mm thickness machine body wall make the machine more stronger and running stale. 2.Aluminum Rollers: All aluminum rolls installed in the machine,which are being dynamic balance testing. Material can smoothly move in these rollers without any scratching. 3.PU-Rollers: The PU rollers are high abrasive resistance,which can insure machine feeding precision. 4.Hydraulic Cylinder Lifter: The jumbo roll material can be easy lift up by the shaft less hydraulic cylinder from the ground. Save labor and easily operating the jumbo roll loading processing . 5.Motors: The machine adopt one set servo motor and two sets asynchronous motors to drive.It make the machine working with a high level cutting precision(0.2mm error range) 6.Control System: The SCN series paper cutting machine adapt intelligent and easy operating control system with Japanese brand PLC. It have automatic counting sheets,automatic stop machine after cutting per batch,automatic detect mother rolls diameter,automatic tension control and so on functions. In the touch screen,you also can check machine working condition parameters. 7.Stacking Pallet: The machine have a stacking pallet,output paper sheets stacking on the pallet. It also has a vibrate board to make the edge of paper sheets smooth and clean. The maximum stacking height can be 1000mm. You can easily discharge the pallet out of machine by forklift. 8.Mark insert equipment: The machine can automatic count the output paper sheets and insert marks into the stacking paper sheets pile. 9.Color mark sensor: If you need cut printed material rolls,the machine can add printing color mark sensor for detecting marks and improving cutting precision.
Detail Images: Stacking Piles Electric Control Cabinet Floating Rollers Hydraulic Cylinder Station Hydraulic Lifter Mark Insert Equipment Round Slitting Knife Stacking Platform Web Guider Control Panel
Parameter:

Model Name	SCT series
Mother Roll Width(Max)	800-1400mm
Mother Roll Diameter(Max)	1400mm
Mother Roll Weight Capacity	1400kg
Paper Core Size	3inch(customize available)
Cutting Length	350-1000mm
Thickness Range	35-400gsm
Cutting Precision	±0.2
Cutting Speed	150 cuts per minute
Pallet stacking height	1000mm

Application
Factory View: Welcome to BINBAO! Our factory is a paragon of order and efficiency, where advanced machinery and meticulous processes converge to create excellence. Spanning a vast area, our well-organized production lines are equipped with state-of-the-art equipment, ensuring seamless operations. From the moment raw materials enter, they are transformed with precision and care through a series of carefully calibrated machines. Our dedicated team of professionals oversees every stage, guaranteeing the highest quality products. We take pride in providing our numerous customers with the machine products and services they desire, meeting and exceeding their expectations. With a commitment to innovation and quality, our paper mill stands as a reliable partner in the industry.
Packaging photos
Customer Factory Tour:
FAQ
1.What material the paper cutting machine knife use? Answer: We adopt Germany importing tungsten steel as our cross cutting knife material. It is enough hard and sharp. You just need sharpen one time per year if you cut normal thickness material. 2.Can you add slitting knives unit in the machine? Answer: The SCT model machine just suitable cut one sheets or two sheets at one time. The slitting knives unit will used to cut two sheets and trim the paper edge. If you want to cut more sheets at one time,we have other models machine available. 3.My paper have very strong static. How do you solve the problem? Answer: Our machine have installed multiple sets static eliminator equipment according your material static level. 4.I am a manufacture of in mold label. We have very high requirements of cutting precision. What is the minimum cutting error of your machine? Answer: Our normal standard model machine can reach ±0.2mm precision. But we also can make printed plastic film sheets cutting machine with more higher precision for in mold label and cigarette box.

---
