Horizontal Machining Center Series, High Efficiency, Machine Lathe

Product Description

Product Description
Double exchange rotary table, Save labor cost, High efficiency

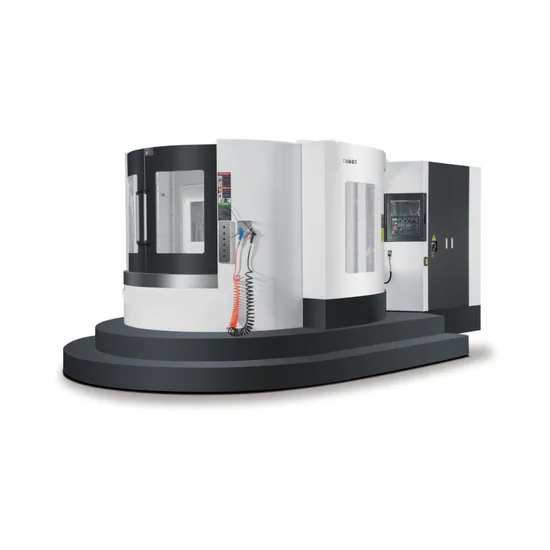

TH-63S is equipped with double-exchange rotary table, which can realize workpiece loading and unloading on the outer table during machining, so that clamping and machining can be carried out simultaneously, reducing non-machining time and improving machine operation rate.
It has obvious advantages for machining parts with short processing time and frequent clamping, and greatly improves equipment utilization.
Processing examples:
X/Y/Z-axis travel: 1050×750×900 mm
X/Y/Z-axis rapid traverse:24/24/24 m/min
Worktable area: 630×630 mm
Spindle speed:6000 rpm
Product Features:
+The base adopts "T" layout, optimized by finite element analysis, and the arrangement structure of the cast tendon type, which improves the overall performance index and does not produce overturning torque in the whole stroke.
+Double exchange rotary table, high stability of operation, improve processing efficiency.
+Taiwan high precision spindle, standard speed 6000rpm, with spindle air curtain protection, stable precision and long life.
+Adopt high power constant torque motor.
+High rigidity roller guide structure, both the heavy cutting rigidity of hard rail and the fast moving characteristics of linear guide. +Screw double support pre-stretching, eliminating transmission backlash and pre-compensating the error caused by temperature rise.
+Precision rotary table, ultra-high positioning and repeat positioning accuracy to ensure workpiece processing accuracy. Detailed Photos
Size specification:
Product Parameters

Machine type	Unit	TH-63S
Stroke
Table X-axis travel	mm	1050
Table Y-axis travel	mm	750
Table Z-axis travel	mm	900
Spindle
Spindle speed	rpm	6000
Spindle taper	-	7/24 taper.50
Spindle motor	kw	15/18.5
Worktable
Number of tables		2
Table indexing		1° /0.0010
Distance from spindle end to table center	mm	130-1030
Distance from spindle center to table surface	mm	0-750
Table area	mm	630x630
Maximum table load	kg	1000
Maximum swing diameter	mm	950
T-slot (number of slots x slot width x spacing)	mm	5 x 22 x 125
Displacement
X-axis rapid displacement	m/min	24
Ya-axis rapid displacement	m/min	24
Z-axis rapid displacement	m/min	24
Cutting feed speed	mm/min	10-10000
Tool magazine
Tool change type	type	Knife arm type
Tool shank type	type	BT-50
Tool puller type	type	P-50 (45° )
Tool magazine capacity (optional)	pcs.	30T(40T/60T)
Max. tool diameter (no neighboring tool)	mm	112 (200)
Max. tool length	mm	350
Max. tool weight (optional)	kg	18 ( 25 )
Others
Controller		OI-MF
Floor space (L X W)	mm	6600x4300
Machine height	mm	2900
Machine weight	T	14 (Floating difference 5% )
Power requirement	KVA	35
Air pressure source	kg/cm2	6

Standard configuration:
Fanuc 01-MF machine
Automatic lubrication system
Ground bolts and spacers
Tool box
Working light
Three-color warning light
Electrical box heat exchanger
Transformer
Machine table air gun
Fully enclosed outer protection cover
chip conveyor and chip storage cart
Mobile hand wheel
Cooling pump
Robotic tool magazine
Hydraulic station
Foot switch
Optional Accessories:
10000/12000rpm direct knotted spindle
3-axis scale
Fifth axis rotary table
spindle center water outlet
Automatic tool length measuring system
Workpiece measuring system
Oil and water separation system
Oil mist collection and separation system
Mitsubishi/Siemens/Guandu/Kainty system
Automatic safety gate system

---
