Hot Sale High Precision Automatic Rubber CS800 Seal Making CNC Machine Lathe

US$85,000.00
1-4 Pieces
US$82,000.00
5+ Pieces

Basic Info.

Model NO.
CS800
Type
Turret Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Seal Macking CNC Lathe Machine
Structure
Slant Bed CNC Lathe
Max. Turning Seal Diameter
800mm
CNC Controller
Siemens 828d/Fanuc
Color
OEM
Chuck
Manual Chuck/Hydraulic Chuck
Key Words
Seal Maker, CNC Turning Machine for Seal
Workpiece
Seal Raw Materials
Delivery Time
2 Months
Warranty Time
12 Months
Loading Port
Shanghai Port, China
Tools
Vdi20 Tool Holder and Inserts
Function
CNC Turning Lathe Machine for Seal Making
Raw Material
PU, NBR
Turret
Horizontal 8 Station Turret
Transport Package
Wooden Case
Specification
2750*1780*1920mm
Trademark
BETA
Origin
Shandong, China
Production Capacity
30 Sets Per Month

Packaging & Delivery

Package Size
300.00cm * 200.00cm * 200.00cm
Package Gross Weight
3500.000kg

Product Description

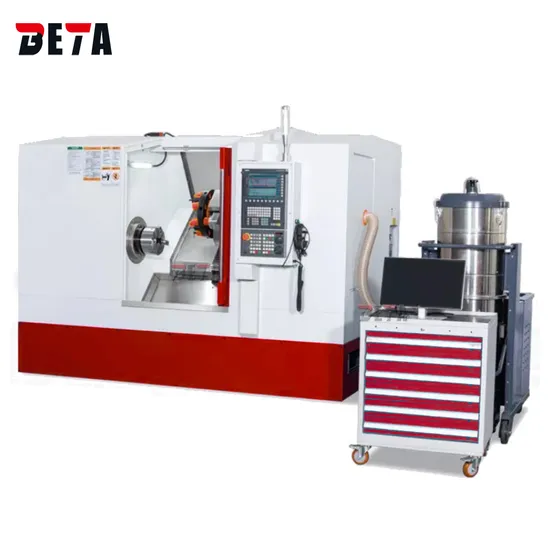

Hot Sale High Precision Automatic Rubber CS800 Seal Making CNC Machine Lathe
Model Unit CS800
Max. Turning diameter over bed mm 830
Max. Seal Turning diameter mm 800
Spindle - A2-6
Spindle bore diameter mm 65
Max. spindle speed r/min 4200
Chuck size inch 8
X-axis rapid move speed m/min 24
Z-axis rapid move speed m/min 24
X-axis travel mm 410
Z-axis travel mm 450
X-axis motor (with brake) kw 2.29 (Siemens )
Z-axis motor kw 2.29 (Siemens )
X-axis guide - SKF 30
Z-axis guide - SKF 35
Turret type - Horizontal 12 station VDI turret
X/Z axis ball leadscrew - Taiwan HIWIN SKF
Leadscrew bearing - Germany FAG
Spindle bearing - NSK
Electrical components - Schneider
Main motor power kw 11
CNC Controller - Siemens 828D controller
Motor power of suction machine kw 5.5

1. This series of seal making CNC lathe for seals is a CNC lathe developed and designed specifically for turning and processing special materials such as rubber and engineering plastics; The main body of the machine tool adopts a high-strength cast iron structure, which is made of servo spindle, machine tool design with chip breaking and suction devices that can quickly and automatically recover chips; Suitable for processing rubber and engineering plastic products; 2. Adopting imported or domestically produced high-quality precision spindle special bearings, V-belt transmission, and stable spindle operation; 3. Adopting imported or domestically produced high-end CNC systems, temperature control devices for electrical cabinets, and centralized machine tool operation panels; 4. Use a special mechanism cutter head to meet various cutting requirements; 4. Use chip breaking and suction devices to make chip recycling automatic and convenient.
