Professional Audio Speaker Active Line Array Loudspeaker Self-Powered Satellite Speaker PRO Audio System

Product Description

Pro Audio Active Professional Audio Speaker PA System Touring Performance Line Array System 10inch Top+18inch PA Neodymium Bass Audio Speaker With CE,RoHS
Factory Introduction:
Ruifeng intelligence technology provides a number of high-quality sound reinforcement system projects, which specializes in government project, theatre, auditorium, multi-functional hall, outdoor broadcast, hotel banquet hall, entertainment area, stadium etc,. To become the leading audio brand at home and abroad is Ruifeng Intelligence goal.
Our products saled at home and over 50 countries and areas such as America, Europe, South America, Middle East, South Asia etc,. Ruifeng sincerely welcome you to become a distributor of us and keep a long-term and stable cooperative relationship.
System Combination:
SPECIFICATIONS
Single 10" Passive top

Frequency response	80Hz~18kHz(±2dB)/70Hz~19kHz(-10dB)
Sensitivity( 1W/1m )	HF:110dB LF:104dB
Nominal Impedance	HF:16Ω LF:16Ω
Power rating( AES )	HF:75W LF:300W
LF Unit	1×10"(Neodymium/65mm Voice Coil)
HF Unit	1 ×3"(75mm voice coil )
Dispersion(HxV)	100°x10°
SPL(continue/peak)	HF:128/134dB LF:128/134dB
Connectors	NEUTRIK NL4MP×2 HF:2+2-,LF:1+1-
Dimension(H×W×D)	308×593×435mm
Net Weight	26( kg )

Single 18" Active Subwoofer

System	18"self-powered subwoofer with DSP	4 channel D class	2×Neutrik Powercon IN/OUT
Sensitivity(1W/1m)	98dB	amplifier modular(with DSP)	output power 4Ω:2000W×4 output power 8Ω:1000W×4 output power 16Ω:600W×4
Frequency response	40Hz~200Hz(±2dB)/30Hz~300Hz(-10dB)	Gain	32dB
Power rating(AES)	900W	S/N	115dB (A weight)
SPL(continuous/peak)	127.5dB/132.5dB	RMON	with load impedance monitoring function
Nominal impedance	8Ω	Operating voltage rang	AC90-264V, 50/60Hz
LF unit	18"neodymium LF unit(100mm)	Dimension(H×W×D)	581×593×660mm
Connectors	1×Neutrik NL4 Speakon 4core plug(HI:2+2-,LF:1+1)
	1×Neutrik NL4 Speakon 4core plug(SUB:1+1-)
	2×Neutrik XLR IN/OUT
	1×Neutrik AES3 IN
	2×Ethernet port RJ45 IN/OUT
	2×Neutrik Powercon IN/OUT

FEATURES

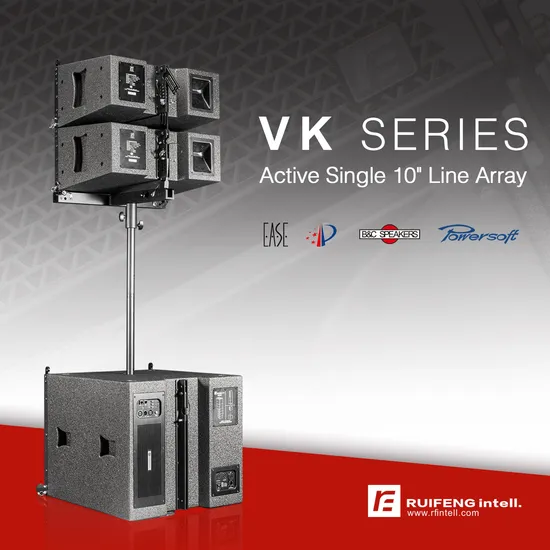

1.VK10: Single 10" line array speaker with high precision devices, compact desgin working at high sound pressure level; Imported 1x3" B&C high unit with DCH patent,1x10" B&C medium and low unit with ACPD patent.

2.VK10SA:Single18" active subwoofer,with built-in DSP module,4*1000W/8Ω output channel,urtral compact design with amazing acoustic performance.New switching Frequency Power supply Design with Power Factor Correction and Intelligent Management Technology to ensure realize the optimal performance and high predictability. With DSP processing ability, the efficiency reached a new height,to provide the best solution for 1×VK10SA+1×VK10S+4×VK10 three way system.
APPLICATION
Stadium,Theatre,Auditorium,Banquet hall,Multi-function hall,Touring,Portable application
Premium Components: B&C Speaker unit + Powersoft DSP + Powersoft AMP module + User friendly software
Classic Projects
Our Advantages:
1) Audited supplier by SGS international certificate organization
2) Product quality: Superior speaker and amplifier, top technology and quality.
3) Certificate: CE,RoHS,SGS,ISO9001,ISO14001,ISO27001,ISO20000-1,ISO18001
4) Monthly Production Capacity: 2000pcs
5) Fast delivery: Get your order when you need it.
6) 5000 square meters workshop, with about 200 workers and 20 professional engineers
7) Professional and Skilled in audio knowledge ---can design complete audio system for you
8) Convenient Transportation: 1 hour to Guangzhou port
9) 24 hours after sales service.
FAQ:
Q1: How long is the warranty for the speakers?
A1: 1 year warranty.
Q2: How about the delivery time?
A2: 3-7days for stock.
10-20 days for new order depend on order quantity since receipt of 30% T/T deposit payment.
Q3: What kind of payments does RF support?
A3: T/T, Western Union, Cash are accpeted.
Q4: What's the MOQ?
A4: MOQ is 1pcs
Q5: Can you produce according to customers' design?
A5: Yes we can, we are professional manufacturer,OEM & ODM are welcome .
Q6:Do you test all your products before delivery?
A6: Yes, we have products 100% test before delivery.
