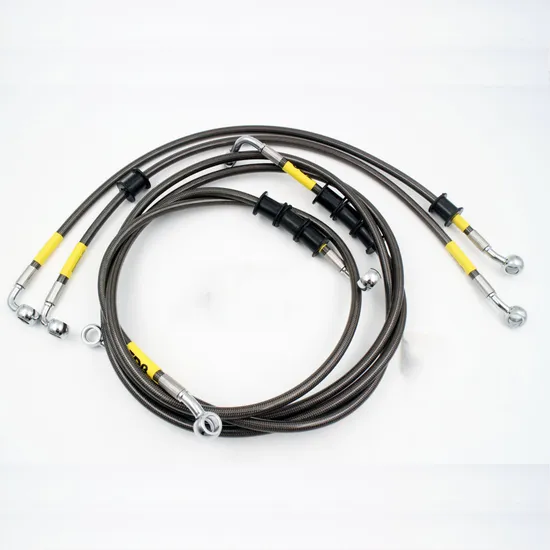

-3-4 An3 4 High Performance DOT Approved Universay UTV ATV Bikes Replacement Stainless Steel Braided Brake Flexible Hard Line with an Banjo Female Male Fittings

Product Description

Product Description -3-4 AN3 4 High Performance DOT Approved Universay UTV ATV bikes Replacement Stainless Steel Braided Brake Flexible Hard Line With An banjo female male Fittings

Production Name
Test Items	Test conditions	Standard	Test result
ID	Normal	3.2mm	3.15~3.45mm
OD	Normal	7.5mm	7.3~7.70mm
Expansion	1000psi	0.33cc/ft max.	0.14~0.16cc/ft
		1500psi	0.42cc/ft max.	0.20~0.22cc/ft
		2900psi	0.61cc/ft max.	0.41~0.43cc/ft
Burst	4000psi×2min;pressure rated 25,000±10,000psi/min	>7000psi No seepage	> 10500psi
Whip	235~250psi	>35h	>70h
Tensile	tensile speed:218±3mm/min	>1446N	2400N
Cold Bend	-45°C ~-48°C× 72h, 3-5s,bending180°	No cracking	No Cracking
Ozone	Women, Girls	No cracking	No cracking
Impulse	146°C 1±0.1min at 1600psi+70	>7000psi No crack	>7500psi
Salt Spray	5%NaCl, 24h,water cleanout in 35°C	No red rust	No red rust

Stainless steel braided Tefl on PTFE brake hose Features: 304 stainless steel braid reinforced hose
Meets FMVSS-106 and SAE J1401 specifications
Every brake hose pressure tested to 3000 psi( 207 bar or 20.7Mpa )
Burst pressure:minimum 7250 psi ( 500 bar or 50Mpa )
Temperature range -73°C to 232°C
Compatible with DOT3,DOT4 and DOT4+ brake fluides
Avaliable PVC /TPU color covering :

Inner layer	PTFE Tefl on Stainless steel braided brake hose Line Assembly
Enhancement layer	stainless steel wire braid ( AISI Steel 304 316 )
Outer layer	PVC, PU(black, red, blue, yellow, purple, clear, gray, orange, ect.)
Temperature range	−65ºC ~ +260ºC
Product performance	high temperature resistance,low temperature resistance,long lasting and good durabilityacid and alkali resistance,ozone resistance, low coefficient,anti friction, long using life and non-aging
Purpose	widely used in Automotive, Bicycle, Motorcycle, Racing, Brake Lines, Clutch Lines,Fuel Systems, Turbo oil feed Hose, Coolant Systems, Oil Pressure Systems Gauge lines & Power Steering
Compatibility	Brake Fluids, Unleaded Petrol, Methanol, Water, & Oil. Ideal for use with Unleaded fuel, ect.

Application: For use in braking system of the vehicle.
1.These Hoses are PTFE lined and are compatible with all brake fluids and feature a braided stainless outer covering to resist abrasion and corrosion. These lines are designed to withstand high pressure and are very flexible and can be used in the tightest of situations. These hoses can be used for many other applications such as gauge, turbo and vacuum lines
2.Production under ISO 9001:2008 and CE control. High quality product and customer's
3.satisfaction is our pursuit. Good faith cooperation. Bright future.
4.A reinforcement 304/316 stainless steel wire cover adds strength and durability to withstand high working pressures and harsh environments.Burst pressure reaches to 12,000 psi


Other Products Our Company QDGY factory is the professional manufacturer of rubber brake hose, stainless steel braided PTFE brake hose, all kinds of fittings, brake hose assembly, bundy tube, and all kinds of accessories.
1. SAE J1401 brake hose:
3.2x10.5mm rubber brake hose
4.8x12.5mm DOT approved brake hose
2. Tefl on brake hose:
3.2x7.5mm -3AN PTFE braid brake hose
3.2x6.5mm stainless steel braid brake line
4.8x8.0mm -4AN PTFE brake line
3. All size of fittings
4. Steel tube:
3/16" steel pipe
1/4" bundy pipe
3/8" bundy tube
5/16" steel tube..single wall and double wall bundy tube
OE No. rubber brake hose assembly, PTFE brake line kits, bundy tube assembly
Accessory:Rubber accessory,steel accessory,plasitc accessory..
Packing & Delivery Our most professional packaging Transport of large trucks And international transport cooperation Our Service 1. High quality
Passed the ISO9001:2002 quality system authentication and ROHS authentication.
2. Enough Stock
Enough stock for your urgent requestment,more quantity will arrange shortly.
3. Conveniently Shipment Type
Qingdao port(Chingtao port) is only about 30 minitues from our factory.
Qingdao airport is only about 40 minitues .
Certifications FAQ Q1: Waht kinds of main rubber hose can product?
A: Rubber brake hose,EPDM brake hose,Hydraulic brake hose,Hydraulic hose,water hose,fuel& oil hose,Brake hose,Stem hose,SAE J1401 brake hose,DOT 1/8" brake hose,OE No. brake hose,Flexible brake hose,Performance competition brake hose...
Q2: What size of brake hose can you supply?
A: common size: 3.2x10.5mm(1/8");4.8x12.5mm(3/16")
Special size: 3.2x11mm...or your request size
Q3: Can you print the words(line) as our requirement?
A: Yes,we do provide embossed and printing marking with different color ,as your requirement.
Q4: What kinds of fitting can product?
A: All kinds.Female fitting,male fitting,banjo fitting,adepter brake hose fitting,bolts and nuts,steel with zinc ,chrome,nickle...stainless steel,brass...
Q5: How many types of brake hose do you product?
A: Brake hose,PTFE braided brake hose,PTFE stainless steel braided brake line,Steel tube,Bundy tube,Steel tube assembly,Brake hose assembly...
Q6: What is my order's delivery date?
A: It usually takes 5-40 days,which generally depends on your order quantity and our storage.Details information ,kindly please feel free to contact with us,or visit our website ,we will reply you within 24 hours.
Q1.Are you a manufacturer or trading company?
We are a professional manufacturer specialized in pipe line industry .
Q2: Waht kinds of main rubber hose can product?
A: Rubber brake hose,EPDM brake hose,Hydraulic brake hose,Hydraulic hose,water hose,fuel& oil hose,Brake hose,Stem hose,SAE J1401 brake hose,DOT 1/8" brake hose,stainless steel braided brake hose,PTFE brake hose,PTFE s.s braided brake hose,OE No. brake hose,Flexible brake hose,Performance competition brake hose...
Q3: Can you print the words(line) as our requirement?
A: Yes,we do provide embossed and printing marking with different color ,as your requirement.
Q4: What kinds of fitting can product?
A: All kinds.Female fitting,male fitting,banjo fitting,adepter brake hose fitting,bolts and nuts,steel with zinc ,chrome,nickle...stainless steel,brass...
Q5: How many types of brake hose do you product?
A: Brake hose,PTFE braided brake hose,PTFE stainless steel braided brake line,Steel tube,Bundy tube,Steel tube assembly,Brake hose assembly...
Q6. How to order?
1.If you are interested in our products ,pls tell us which type and quantity you need .
2.We will quote for you according to the requirement .
3.When you confirm ,perform invoice will be send you.
4.We will produce ASAP when received your deposit .
5.Deliver the products when finish producing .
Q7: What is my order's delivery date?
A: It usually takes 5-40 days,which generally depends on your order quantity and our storage.Details information ,kindly please feel free to contact with us,or visit our website,we will reply you within 24 hours.
Q8. After sale service.
Follow status up time by time until the products arrival ,and try our best to solve any problems you mentioned.

---
