10m-24m High End Towable Boom Lift Sky Lift

Product Description

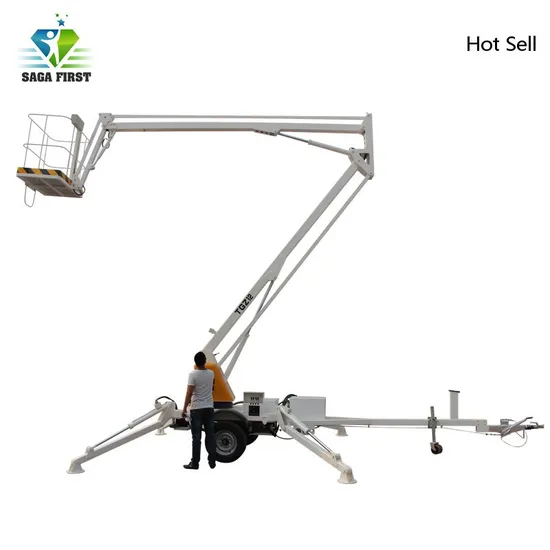

Construction Towable Spider Articulated Boom Lift
(European Quality)
Sagafirst Brand Articulated Boom Lift moves by tractor tow and lift up down by different power motor,like: AC electricity,diesel,gasoline,DC battery power and hybrid power. Price are different.The towable spider lift can be customized as per requests. TBL-A series are high configurations and meet Europe/USA standards.It can be registered and drive on city road in Europ countries. Operator can operate the platform up/down both standing on platform and ground. Certificate: CE,ROHS,ISO,SGS etc.

Model	TBL-12A	TBL-14A	TBL-16A	TBL-18A	TBL-20A	TBL-22A
Platform size(mm)	1200*800	1200*800	1200*800	1200*800	1200*800	1200*800
Lifting height(m)	10	12	14	16	18	20
Working height(m)	12	14	16	18	20	22
Load capacity(kg)	200	200	200	200	200	200
Working radius	5.2	6.4	8.5	9.5	10.9	12.5
Net Weight(kg)	1700	1800	2350	2600	4300	4450
Overall Length(mm)	5400	6400	6200	7000	7100	7700
Overall Width(mm)	1665	1665	1730	1730	1850	1850
Overall height(mm)	1900	1900	2100	2200	2260	2260

Please select the lifting power:
1. AC electricity
2. DC battery power
3. Gasoline power
4. Diesel power
5. Hybrid power,like DC battery+Diesel,DC battery+AC electric,AC electric+Diesel
Safety Precautions:
1. Explosion-proof valves
2. Spillover valve
3. Emergency decline valve
4. Check valve
5. Adjustment valve
6. Gradienter
Towable Articulated boom lift is one of the most ideal aerial lift platform for both indoors and outdoors maintenance work. It can rotate 360 degree in the air and platform height is from 8m to 20m. Articulated boom lift is driven by Diesel,Gas, or Battery or confused Power.It is widely used in neighborhood unit, road light maintenance, factories high place maintenance, construction site and so on.
SAGA FIRST ® Features & Advantages:
Use Germany ALKO brand brakes with high quality Use Switzerland Bucher brand DC pump station Use Japan Honda brand Gas pump station Use China Famous YSD brand diesel pump station Use waterproof and dust proof electrical box.Suitable for outdoors working. Waterproof control pane can be used when raining. Self Levelling sole for efficient and safety operation Water proof diesel engine,motor and battery cover Humanized access hole for daily convenient maintenance Manual Diesel engine accelerator much more flexible to operate. Two way cylinders with balance valve and emergency decline switch. Even hydraulic hose rupture, platform will none drop down to guarantee completely safe. Equipped with basket levelling switch,make adjust basket much more easier. Equipped with Torsion Shaft with great shock absorption function, which make it better at walking on road. Hydraulic oil filtration alarm system,remind you replace hydraulic oil when there is impurity in the oil. Basket and Arm lock system avoid equipment body waggling during transportation. Humanized Flood lights on platform for working Equipped with brake lights connected with tractor. Equipped with caution lights on each legs. Anti-pinch hand basket. Equipped with safety harness to protect operator. Stable Rotary motor,360°rotation. Wide Horizontal reach from 5m to 10.5m Max 40Km Working Speed Multi power for choice,such as AC,DC, AC&DC,Diesel, Gas and so on. Offer FREE quick wear parts for quick replacement
Articulating Trailing Cherry Picker Lift is widely used in construction site, building maintenance, factory daily aerial work maintenance and various kinds of aerial work
Customer Visit Us & Our Factory Display
Welcome to visit us and negotiate business.We will pick up you and arrange the accommodation hospitally.Dealers and Wholesalers are especially welcomed and we will give special discounts.
Our Service:
1.We can design the customerized the lifter as per your requirement.
2.The most suitable model will be recommended to you once we know about your requirement.
3.Shipment can be arranged from our port to your destination port or home.
4.Opetion video can be sent to you if needed.
5.Maintenance video and user manual.
6.Parts of the lifting equipment can be sent to you by express within 7 days if needed.
Frequently Asked Questions:
1.How can customer buy parts once it break down?
The lift adopts most of the common parts of hardware.You can buy the parts in your local hardware market or forklift parts shop.
2.How can customer repair if any problem?
One of the great advantage of the equipment is with very very low failure rate.Even it breaks down,we can guide to repair it by video and repair instruction.
3.How long is the quality guarantee?
One year quality guarantee.send the parts free of charge

Frequent Asked Questions	Answers
Are you a factory or trading company?	We're factory with over 12years exporting experience.
What's the MOQ?	1UNIT,the more,the better.
What's the payment terms?	<USD4999: 100%TT in advance. >USD5000: 30%TT in advance,balance before shipment. >USD10,000: TT or Irrevocable L/C At Sight.
Do you offer OEM&ODM service?	Yes,like lifting capacity, lifting height, size of platform,painting color,logo,manual etc.
What's the delivery time?	15~20days after down payment
What's the quality warranty?	24 months.Offer free parts for replacement.
How can I get the after-sales service?	We offer videos,pictures and technical guidance immediately.
What's your QA&QC policy?	3times 100% inspection before shipping.
Can you tell me your clients in my country?	Of course. But only after the permittance of customers.

Feel free to contact us anytime. Our professional salesmen are 24hours online.

---
