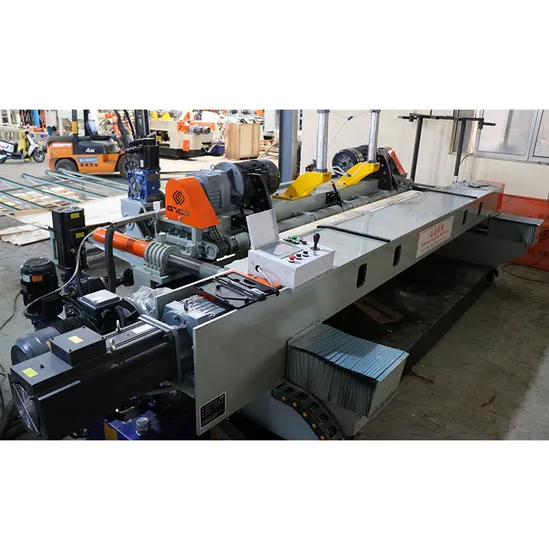

Plywood Veneer Rotary Peeling Lathe Veneer Peeling and Cutting Machine

Product Description

Plywood veneer rotary peeling lathe veneer peeling and cutting machine
Product Parameters

GTPM1300mm Veneer Peeling Machine
Wood log max.Dia.	450mm
Left log dia.	30mm veneer thickness
Core veneer thickness	1-3.6mm knife specification
Peeling knife	1400x180x18mm
Overall dimension	3600x2200x1300mm
Weight	4.5tons
Total power	25.5kw

GTPM2700mm Veneer Peeling machine
Length of Log(mm)	970-2700mm
Max Processing Log Diameter	Φ550
Min Residual wood Diameter(mm)	Φ35
Single and double roll diameter(mm)	Single rollerΦ125 , Double RollerΦ125
Working thickness Range(mm)	0.4-4.0
Peeler Blade size (mm)	2900*180*16
Main Line Speed (m/min)	0-80m/min and adjustable
Total Motor Power(kw) (45KW )	Single Roller : Φ125mm, R87 reducer ,7.5kw*2; Double Roller : Φ125mm,R87 reudcer,15kw Feeding motor: R87 reducer, 11kW; Blade motor: RV120 reducer, 4kw. Conveyor Motor: RV 120 reducer, 4KW
Overall Size(L*W*H) mm	6200* 2250*1650
Weight (KGS)	About 8000KGS

Product Description
1. Working steadily: The blade base is fixed. double roller moving and steady the guide rail. increase the working stability and veneer quality. It is also convenient to transfer veneer
2. Reduce wear: Adopt a double screw nut, reduce the worn of the nut and can adjust the screw gap according to the wearing capacity, promise the machine works in high precision condition
3. Key technology: Special cams structure to adjust the pressure from single roller to log, it is changed according to log diameter, simplicity, and strictness, keeping the pressure and knife gap the same. This is the key technology for this machine
4. High performance
Adopt high-performance universal coupling, increase the strength and reduce the working noise drastically. not easy to broken
5. Heavy bearing: Adopt heavy bearing, increase the bearing strength and reduce the bearing quantity. so can down the broken risk
Detailed Photos
