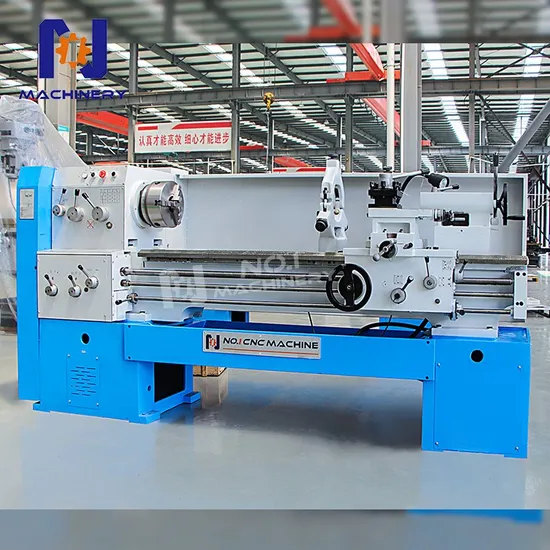

Hot Selling Product Metal Machining Tools C6140*1500mm High Quality Manual Lathe Machines

Product Description

Product Description
C series lathes are capable of turning various materials' end faces, inner and outer cylinders, conical surfaces, and other rotating surfaces. It can accurately process various metric, inch, module, and diametral pitch threads. In addition, tasks such as drilling, reaming, and pulling oil grooves can also be easily completed.
Key Features:
High-speed dynamically balanced spindle with advanced machine tool technology.
Solid cast iron structure ensures rigidity in the bed, headstock, and saddle.
Stress-relieved bed and induction-hardened guideways for enhanced rigidity and longevity.
Precision-ground slideways guarantee high accuracy across the machine.
Extra heavy ribbed bed and hardened, ground gears for durability.
Large spindle bore (80mm) accommodates larger workpieces.
Supports diametric, inch, module, and metric threads.
Joystick control for X and Z feed, mounted on the support for ease of use.

Product Parameters

PARAMETER ITEM	UNIT	C6(1/2)36	C6(1/2)40	C6(1/2)50
Maximum turning diameter of bed	mm	360	400	500
Maximum turning diameter on the tool post	mm	190	330	330
Maximum turning diameter at the saddle	mm	540	560	660
Center distance	mm	750/1000	750/1000	1500
Bed width	mm	360
Spindle hole		Φ52/80
Spindle end size		C6
Spindle taper hole		MT6
Spindle speed range (number of stages)	rpm	40-1400(9steps)special order1600
Metric Thread Range (number)	mm	0.25-14 (19kinds)
Inch thread range (number of types)	inch	2-40
Modulus thread range (number of species)	m	0.5-3.5(11kinds)
Horizontal skateboard stroke	mm	180 222
Śmall tool holder stroke	mm	95
Turning tool holder section size	m	20x203
Tailstock sleeve taper		MT4
Tailstock sleeve diameter	mm	65
Tailstock sleeve stroke	mm	140
Main motor	kw	3 4
Packing size:(LxWxH)
750	mm	2220x1150x1590
1000	mm	2470x1150x1590
1500	mm	2970x1150x1590
Weight:Net/Gross(kg)
750	mm	1350/2000	1400/2050	5000/2150
1000	mm	1450/2100	1500/2150	1600/2250
1500	mm	1600/2250	1650/2300	1750/2400

Detailed Photos
MANUAL CHUCK
The standard version is equipped with a 3-jaw or 4-jaw manual chuck. Customers can choose chucks of different sizes according to their requirements. A hydraulic chuck
FOUR-STATION TOOL HOLDER
Four-station tool holder,fast-moving mechanism,can be operated with one hand, and tool holder pro-tection is optional.
QUENCHED TAILSTOCK
The tailstock sleeve is treated with high-frequency quenching and carefully ground to prevent wear and tear.
HIGH PRECISION SCREW
It has good wear resistance and accuracy retention,ensuring that the machine can be used for a long time and has a long life.
2 AXIS DRO
2 axis digital readout,need extra cost.
