2000L High Ground Clearance Agricultural/Agriculture/Agriculturing/Farm/Filed Tractor 4WD Self-Propelled Pestiside Power ATV Boom Sprayer for Corn/Pineapple

Product Description

Item	Content	Unit	Model
			3WPZ-1300C	3WPZ-1300CJ	3WPZ-2000BJ
Overall Size	Dimensions	mm	5450×2350×3300	5450×2350×3300	5500×2700×3700
	Boom Length	mm	20100	20100	20100
	Boom Lifting Height	mm	500-1900	500-1900	1450-2900
	Ground Clearance	m	1.2	1.2	1.72
	Wheel base	mm	2300	2300	2620
	Wheel track	mm	1800	1800	2540/(2200-2600)
	Cab type	/	canopy	cab	cab
Spraying System	Working Pressure	Mpa	0.2-0.5	0.2-0.5	0.2-0.5
	Tank Capacity	L	1300 (LLDPE)	1300 (LLDPE)	2000 (LLDPE)
	Mixing Mode of Pesticide	/	Jet Flow+Back Flow	Jet Flow+Back Flow	Jet Flow+Back Flow
	Spray Width	m	20.1	20.1	20
	Working efficiency	m2/h	55000-66000	55000-66000	66000-99900
	Fuel consumption	liter/h	13	13	13
	Nozzle Type	/	Cone Spray/42 pcs	Cone Spray/42 pcs	Cone Spray/42 pcs
	Material of Boom	/	Aluminium Alloy	Aluminium Alloy	Aluminium Alloy
	Position of Boom	/	Front	Front	Front
	Driving Mode of Liquid Pump	/	Hydraulic	Hydraulic	Hydraulic
Engine System	Rated Power	kw/ (rpm)	74/2400	74/2400	74/2400
	Battery Capacity	/	24V 60AH	24V 60AH	24V 60AH
Driving System (3+2)x2	Driving Type	/	4WD	4WD	4WD
	Steering Type	/	4WS	4WS	2WD\4WD\oblique walking
	Tire Type	/	Pneumatic
	Tire Outer Diameter	mm	1400	1400	1350
	Tire Width	mm	130	130	200
	Turning radius	mm	3600	3600	4000
	Driving speed	km/h	0-24	0-24	0-24
Fertilizer spreader	Spreading width	m	25	25	no
	Fertilizer tank	liter	700	700	no
Optional	Double disc type fertilizer spreader				no

Product Description
1. New self-designed sixth-generation high-end drive axle, can adapt to various harsh environments;
2. The four-wheel steering, less pressure seedlings,flexible control;
3.The machine design is ergonomically verified, with small turning radius;
4. convenient maintenance, spacious and comfortable driving space;
5. Spraying and spreading fertilizer can be carried out at the same time to meet the needs of high-end users.
Company Profile

Xiangrui is a professional company manufacturing self-propelled boom sprayer of 700 liters,1000 liters,1300 liters,2000 liters and 4000 liters, which are widely used for spraying rice, wheat, corn, soybean,vegetables and other crops, greatly improving labor efficiency and pesticide utilization.There are 11 professional technicians, who have many years of experience in plant protection machines, Our company has passed the ISO9001 quality management system certification, CE, national compulsory product 3C certification.
Certifications

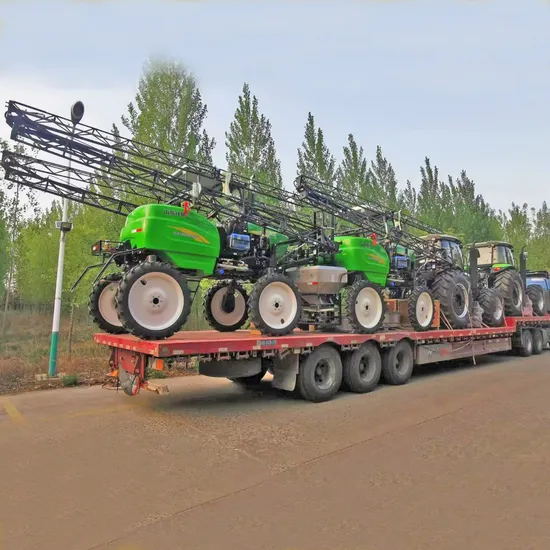

Packaging & Shipping

FAQ
Q1: Manufacturer or Trading Company? We are a manufacturer since 2014.Q2: How about the quality? Our self-propelled boom sprayer sales is no. 1 in China, the quality is very good.Q3: What's the delivery time? Normally 15 days after receiving deposit.Q4: How about the gurantee? Our axle guarantee is 2 years!

---
