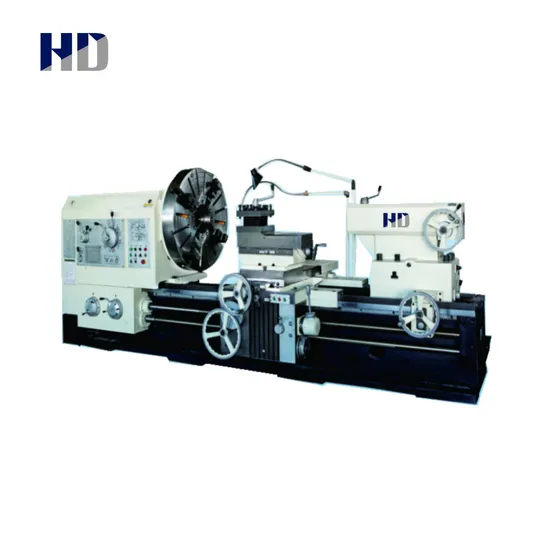

Heavy Duty Horizontal Lathe Cw6263/Cw6280/Cw62100/Cw62125

Product Description

Specification Parameter

Items	CW6263	CW6280	CW62100	CW62125
Max.swing over bed diameter	630mm	800mm	1000mm	1250mm
Width of bed	550mm	600mm	755mm	755mm
Max weight of work piece	2000kg	3000kg	6000kg	6000kg
Center distance	1000/1500/2000/3000/4000mm	1500/2000/3000/4000/5000/6000/8000mm	1500/3000/5000/6000/8000mm	1500/3000/5000/6000/8000mm
Max.turning length (with gap)	850/1350/1850mm/2850/3850mm	1350/1850/2850/3850/4850/5850/7850mm	1350/2850/4850/5850/7850mm	1350/2850/4850/5850/7850mm
Max.swing over cross slide	350mm	480mm	615mm	865mm
Spindle holediameter	104mm	104mm	130mm	130mm
Spindle taper	Metric 120 1:20	1:20/120	1:20Metric No.140	1:20Metric No.140
Spindle speeds	7.5-1000r/min	18 kinds 5.4-720r/min	21 kinds 3.15-315r/min	21 kinds 3.15-315r/min
Sleeve diameter	100mm	100mm	160mm	160mm
Sleeve taper	Morse 5	Morse 6	Morse 6	Morse 6
Sleeve travel	250mm	250mm	300mm	300mm
Main motor	11kw	11kw	22kw	22kw
Rapid feed motor	1.1kw	1.1kw	1.5kw	1.5kw

Company Profile
Dalian Haidi Machinery Co.,Ltd is a professional manufacturer that specializes in the development, research and production of single-column vertical lathe, double-column vertical lathe, horizontal lathe, radial drilling machine, slotting machine, boring-milling machine, machining center, customized special machine tool, and other equipment. The researched products by our company have such advantages as a great variety, complete specification, advanced technology and outstanding quality.
Our company, founded in June 2007, has a registered capital of RMB 60 million Yuan and covers a building area of 30,000 square meters. Now we have more than 200 staff members, including 11 senior engineers, 8 senior managerial staff,over 160 technical workers.
Our own casting factory was established in 1983 and has an annual output of over 20,000 tons. Our company is the largest enterprise that specializes in the casting of machine tool in southern Liaoning.In the meantime, it has offered great support to speed up our company's product research and production and made great contribution to making sure products are supplied to customers in the shortest duration.
Our company follows the principle of "independent innovation, govern enterprise by good virtue and prosper enterprise by good faith". We shall work hard persistently to make innovation and breakthrough and strive to become a first-rate enterprise. We would like to work hand in hand with all our friends toward a brilliant future.
Exhibition Photos

Certificate
Packing&Shipping
FAQ

---
