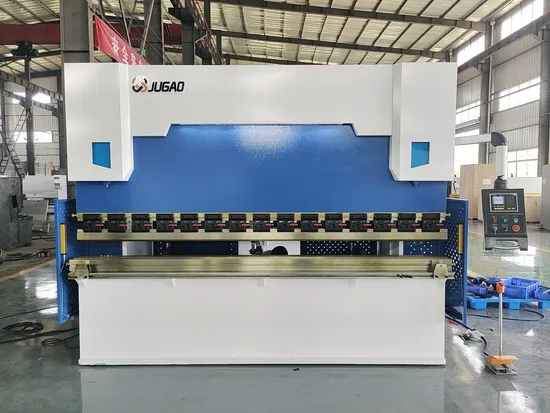

E21 Controller Press Brake Bending Machine with High-Quality German Brands

Product Description

The WC67YK series, available in 80, 100, 160, and 200 Ton models with a 3200mm length, offers an exceptional E21 NC Sheet Metal Hydraulic Press Brake at an attractive price point.
1. Experience seamless operations with our multi-language CNC operating system, designed for global efficiency and user-friendly interaction.
2. Benefit from a silent, yet powerfully reliable internal gear pump, ensuring smooth and uninterrupted performance.
3. Enjoy precision and control with a hydraulic system meticulously regulated by proportional valves for the highest level of accuracy.
4. Leverage the advanced combination of brushless drive and motor enhanced with 'can open' digital technology, providing a high precision backgauge that enables rapid axis movement.
5. Utilize high precision optical lines that guarantee superior accuracy in every operation.
6. Take advantage of adjustable clampings that offer flexibility and ease during usage.
7. Employ our hardened, grinded tools and clamps designed for quick and precise tool adjustment, optimizing your workflow.
8. Equipped with complete backgauge fingers that are mounted on a double linear guide, providing stability and exact positioning.
9. Make fine adjustments effortlessly with stainless steel front supports that are adjustable in height for custom operations.
10. Experience precision with our automatic mechanical crowning, ensuring consistent results and product quality.
11. The electrical panel is fitted with top-tier components, ensuring reliability and safety in every use.
12. Adhering to European safety standards, our Start&Stop system guarantees security without compromising performance.
Technical parameter

Model	Nominal Pressure (kn)	Length of table (mm)	Distance Between Housing (mm)	Throat Depth (mm)	Stroke (mm)	Open Hight(mm)	Main Motor (kw)	Dimensions (L × W × H)(mm)
40/2000	400	2000	1600	200	110	335	4	2545×1510×2050
40/2500	400	2500	2000	200	110	335	4	2950×1510×2080
63/2000	630	2000	1600	250	110	350	5.5	2555×1600×2130
63/2500	630	2500	2000	250	110	350	5.5	2960×1600×2180
63/3200	630	3200	2600	250	110	350	5.5	3740×1600×2230
100/2500	1000	2500	2000	350	150	400	7.5	2980×1650×2330
100/3200	1000	3200	2600	350	150	400	7.5	3740×1650×2355
100/4000	1000	4000	3200	350	150	400	7.5	4550×1650×2450
100/5000	1000	5000	4000	350	150	400	7.5	5100×1500×2650
125/2500	1250	2500	2000	350	150	410	7.5	3980×1650×2370
125/3200	1250	3200	2600	350	150	410	7.5	3750×1650×2450
125/4000	1250	4000	3200	350	150	410	7.5	4550×1650×2470
125/5000	1250	5000	4000	350	150	410	7.5	5100×1500×2795
125/6000	1250	6000	4500	350	150	410	7.5	6100×1500×2895
160/2500	1600	2500	2000	350	150	425	11	2980×1715×2410
160/3200	1600	3200	2550	350	150	425	11	3750×1715×2450
160/4000	1600	4000	3200	350	190	450	11	4550×1715×2730
160/5000	1600	5000	4000	350	190	450	11	5100×1570×2900
160/6000	1600	6000	4500	350	190	450	11	6100×1570×3010
200/3200	2000	3200	2600	350	240	460	11	3750×1815×2715
