US$2,500.00-56,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Computerized
Computerized
Certification
CE, ISO9001:2008, GMP
Transport Package
Wooden Box
Production Capacity
1000 Sets/Year
Product Description
Product Introduction:
Full Automatic Horizontal Flaskless Molding Line is mainly suitable for moulding production of valves, mechanical parts, automobile parts, hydraulic parts, pipe fittings and fastening these parts, also suitable for ductile iron,gray iron, malleable cast iron and non-ferrous metails these materials,with advantages of high production efficiency, low investment, quick effect, energy-saving and environmental protection. This moulding line mainly consists of moulding machine, pouring line, cooling line, castings conveying system, and electric control, hydraulic control and pneunatic control system, which can realize full automatic control of sand feeding, moulding, pouring, cooling and castings movement.
Main characteristics as follows:
1. Horizontal parting, suspended shot sand, horizontal casting.
Pneumatically feeds moulding sand in vertical direction, has the best filling performance and completely improve the shadow defect caused by horizontal shooting sand. Simple process,convenient moulds and pouring gate, high product rate and strong applicability.
2. Adjustable castings height and compaction pressure
The user can choose the casting height and compaction pressure under different castings flexibly to ensure the reasonable use of moulding sand.
3. Convenient template replacement.
Template installation: fixedy by four screws, the replacement is completed within five minutes, and the mold is changed frequently.
4. Failure display
The fault is displayed on the touch screen, and the fault reason is displayed on the touch screen. The user can easily find the fault and take measures.
5. High reliability of hydraulic, pneumatic and electrical system.
The hydraulic, pneumatic and electrical components all adopt imported components to ensure the stable and reliable operation of the equipment and the service life.
6. Easier, more convenient and safer for core setting
All types of equipment manufactured by the company adopt a stable and reliable safety defense system.
7. Adopt servo hydraulic system to save energy.
With servo hydraulic system, the supply pressure of the system can be adjusted automatically according to the various stages of the equipment operation, reducing the loss of energy. technical parameter:

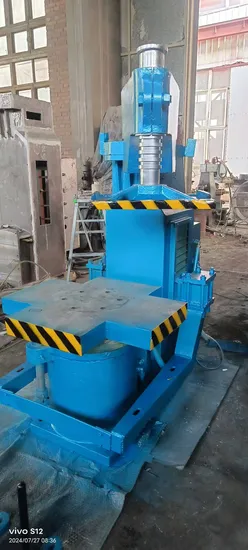

Sand Molding Machine | Z143 | Z144 | Z145 | Z146 | Z147 | Z148(small) | Z148(big) | Z149 | Z1410 | Z1411 | Z1412 | Z1413 | Z1415 |
table size | 560*420mm | 560*420mm | 700*600mm | 800*650mm | 880*700mm | 1000*800mm | 1100*800mm | 1200*800mm | 1400*1030mm | 1500*1050mm | 1700*1100mm | 2000*1200mm | 2400*1200mm |
starting stoke | 150mm | 150mm | 200mm | 250mm | 250mm | 300mm | 350mm | 350mm | 400mm | 400mm | 450mm | 500mm | 500mm |
suppressing strength | 4200kg | 4200kg | 9000kg | 10500kg | 12000kg | 13000kg | 16500kg | 19000kg | 29000kg | 35000kg | 38000kg | 40000kg | 50000kg |
earthquake strength | 150kg | 150kg | 350kg | 450kg | 550kg | 650kg | 850kg | 1000kg | 1600kg | 2000kg | 2500kg | 3000kg | 5000kg |
machine weight | 750kg | 680kg | 1500kg | 1880kg | 2100kg | 3200kg | 4500kg | 4900kg | 6000kg | 7200kg | 9000kg | 11000kg | 14500kg |
1.Reply your inquiry in 24 working hours.
2. Customized design is available.
3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers .
4. Professional factory : We are manufacturer, specializing in producing all kinds of machinery for more than 20 years, competitive with good quantity.
5.As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature.
Welcome to contact us or visit our company.
>>
