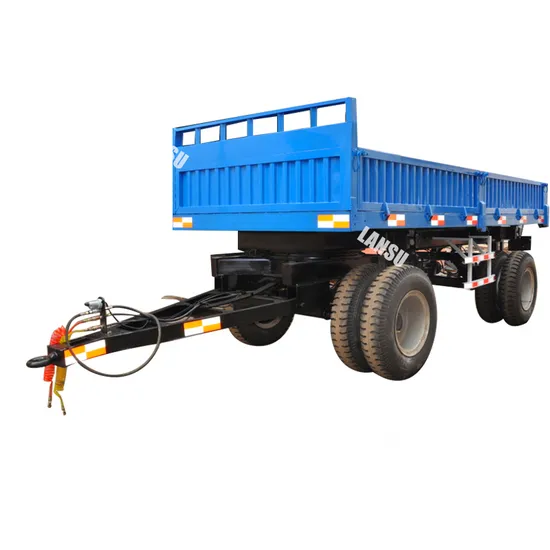

5ton Flatbed Trailer with Side Board Farm Platform Trailer

Product Description

The series farm trailer has various types form . The product has reasonable structure; beautiful appearance, economic and durable and also can match various types of tractors, it is divided into many kinds of types :single axle of two wheel trailer, double axles of four wheel trailer, hydraulic dump or no-hydraulic dump .it also can be made according client's requirements,the following parameters table is only for reference .

MODEL

7C-1.5

7CX-1.5

7C-2

7CX-2

7C-3(mono-axle)

7CX-3(mono-axle)

PRICE FOB(qingdao)

Carriage dimension(mm)

2100*1400*450

2100*1400*450

2250*1500*450

2250*1500*450

3000*1600*450

3000*1600*450

Overall dimension(mm)

3000*1300*1700

3000*1300*1700

3150*1550*1880

3150*1550*1880

4150*1650*2000

4150*1650*2000

Rated weight(kg)

1500

1500

2000

2000

3000

3000

Deadweight(kg)

200

280

330

430

580

680

Tire

6.50-16/2

6.50-16/2

6.50-16/2

6.50-16/2

7.50-16/2

7.50-16/2

Unload form

Manual

Hydraulic dump(back)

Manual

Hydraulic dump(back)

Manual

Hydraulic dump(back)

Brake form

Impact/Air brake

Impact/Air brake

Impact/Air brake

Impact/Air brake

Manual

Air brake

Matched power(HP)

12-18

12-25

12-25

25-40

Quantity /40GP

65

60

55

50

30

24

MODEL

7C-3(bi-axle)

7CX-3(bi-axle)

7C-4

7CX-4

7C-5

7CX-5

PRICE FOB(qingdao)

Carriage dimension(mm)

3400*1700*460

3400*1700*460

3800*1700*460

3800*1700*460

3950*2190*550

3950*2190*550

Overall dimension(mm)

4400*1750*1980

4400*1750*1980

5200*1750*2000

5200*1750*2000

5550*2250*2170

5550*2250*2170

Rated weight(kg)

3000

3000

4000

4000

5000

5000

Deadweight(kg)

820

980

900

1100

1400

1700

Tire

6.50-16/4

6.50-16/4

7.50-16/4

7.50-16/4

8.25-16/4

8.25-16/4

Unload form

Manual

back tipping

Manual

Hydraulic dump

Manual

Hydraulic dump

Brake form

Manual

Air brake

Manual

Air brake

Manual

Air brake

Matched power(HP)

40-55HP

40-60

40-60

Quantity /40GP

18

15

16

14

12

12

MODEL

7C-6

7CX-6

7C-7

7CX-7

7C-8

7CX-8

PRICE FOB(qingdao)

Carriage dimension(mm)

4500*2150*550

4500*2150*550

5500*2150*550

5500*2150*550

5500*2150*550

5500*2150*550

Overall dimension(mm)

6200*2200*2300

6200*2200*2300

7300*2200*2500

7300*2200*2500

7300*2200*2500

7300*2200*2500

Rated weight(kg)

6000

6000

8000

8000

8000

8000

Deadweight(kg)

1750

2050

2100

2500

2100

2500

Tire

9.00-16/4

9.00-16/4

9.00-20/4

9.00-20/4

9.00-20/4

9.00-20/4

Unload form

Manual

Hydraulic dump

Manual

Hydraulic dump

Manual

Hydraulic dump

Brake form

Manual

Air brake

Manual

Air brake

Manual

Air brake

Matched power(HP)

50-90

50-90

60-100

60-100

60-100

60-100

Quantity /40GP

8

8

8

8

8

8

MODEL			7C-10		7CX-10		7C-12		7CX-12
PRICE FOB(qingdao)
Carriage dimension(mm)			6000*2150*550		6000*2150*550		6500*2200*550		6500*2200*550
Overall dimension(mm)			7800*2200*2500		7800*2200*2500		8300*2200*2500		8300*2200*2500
Rated weight(kg)			10000		10000		12000		12000
Deadweight(kg)			2400		3000		2800		3400
Tire			8.25-16/8		8.25-16/8		9.00-20/8		9.00-20/8
Unload form			Manual		Hydraulic dump		Manual		Hydraulic dump
Brake form			Manual		Air brake		Manual		Air brake
Matched power(HP)			80-100		80-100		80-100		80-100
Quantity /40GP			8		8		6		6

---
