Downdraft Spray Booth Automotive Maintenance Equipment with Ce

Product Description

Product details:
Model: YS-OB10
Inside dimention: 6300*3450*2700mm(L*W*H)
Any Size Requirements Can Be Met.
With plenum, intake and exhaust air fan.
CE certificate approval.
Painting & Baking Function.
A. During painting, spray booth can offer a sealed environment with cleanness, safety and excellent lighting for the painting operation of all kind of components and different products.
B. During baking, drying time, temperature and humidity in spray booth can be set according to different paint materials to achieve a perfect high-quality spraying and baking for your cars.
C. Spray booth makes spraying and baking operation with no limits of all kinds of whether, thus ensuring physical fitness of operators and absolute safety of equipments.

General Description
Spray booth comes out as it is seasoned with spraying for whole surface of modern automobiles, part repair and baking which can provide operation room of cleanness, sanitation for above tasks. The whole set equipment has the function of ventilation, air purge, drying, disposing exhaust gas and so on which meets basic requests of auto surface disposal. The equipment is made up of room body, lighting unit, intake and exhaust air system, heating system, air purge system, exhaust gas disposal system and control system.

Conveying & Storage
As spray booth are in big size, they're conveyed in bulk while loading and unloading. The parts in frame should be loaded and unloaded by fork vehicles while the small parts are conveyed by manpower. Be noticed to make sure that the parts are not damaged and dilapidated in the loading and unloading process.
The finished parts of spray booth are usually stored in the finished products warehouse, and marked on the outside packages for checking before delivery. After being sent to the destination, all the parts should not be put in the open air but in store house to prevent from rusting and oxidized by the moisture.

Warranty
The goods are guaranteed for 24 months from the date of receipt, but the filters and lamps are not guaranteed. It cannot be applied for damages caused by negligence of operations or mishandling of the machine.
YOKISTAR Products
High quality and advanced technology are applied in YOKISTAR product ranges, involving automotive spray booth, bus and truck spray booth, prep station, mixing room, bench spray booth, open face spray booth and infrared curing lamp.Custom Design paint booth is our super advantage.

Inside Size	15000×5000×5000mm(L×W×H)
Outside Size	15144×6896×5600mm(L×W×H)
Main Door	Folding door,3 folds,3000×2600 mm(W×H), with aluminum alloy frame,colour:blue.
Escape Door	1 unit,650×1800mm(W×H),colour:white

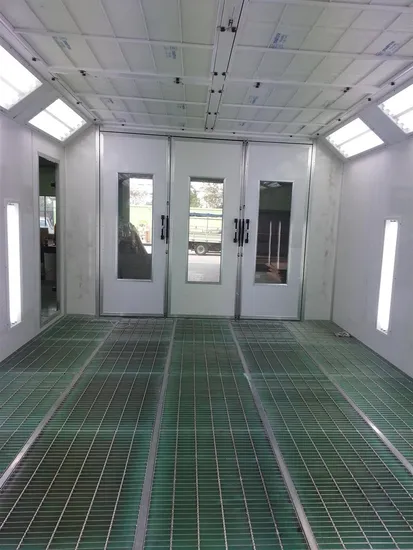

Basement	Galvanized steel assemble, 300mm high, quadrate steel support,5 rows of grilles made by flat bar and round steel,then galvanized.2 ramps, external setting, 750×2000mm/pc.
Wall Panels	Thickness:50mm,width:1150mm,tongue and groove structure,0.376mm colour steel with 50mm thick polystyrene(EPS) insulation inside,colour: white.
Lighting	Ceiling Lights: 8Units×4Pcs=32Pcs×36W,with electronic ballasts,lighting boxes are powered coated.Side Lights: 8Units×2Pcs=16Pcs×36W, with electronic ballasts,vertically set, lighting boxes are powered coated.
Generator Setting	Intake air from back upper direction, exhaust air from back upper direction galvanized steel molding frame; white coated steel outside, galvanized steel inside, filled with heat preservation material in the middle.
Intake Air System	2× 4 KW double-intake centrifugal fans for intake air, model YDW4.5L1, air capacity for each fan: 12500.3 /h.
Exhaust Air System	1×5.5 KW double-intake centrifugal fan for exhaust air, model YDW4.5S, air capacity: 16000.3 /h, with manual damper for exhaust air.
Heating System	RIELLO G20 diesel burner, stainless steel heat exchanger, electric damper actuates from spraying to baking cycle. Max. heating productivity: 20000kcal/h.
Filter System	Pre-filter, ceiling filter, fibreglass filter, activated carbon filter
Roof Plates	Galvanized steel plates
Control System	Spraying, heat spraying,baking,time setting, lighting switch,failure indicator, thermostat, power supply switch,emergency stop,hour meter.All motors are normal start.

---
