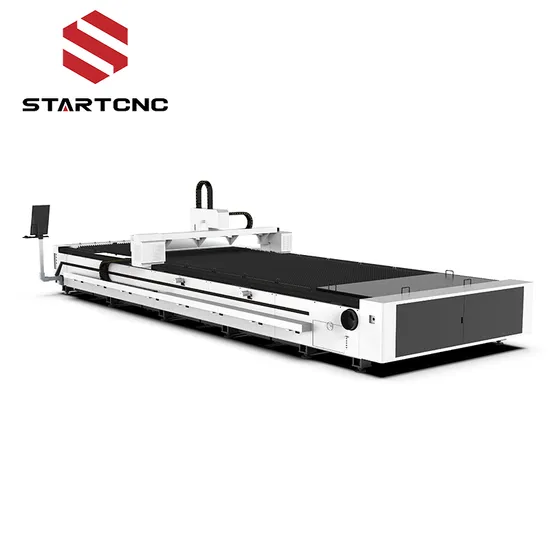

3015 6020 Fiber Laser Cutting Machine 3000W 6000W Price for Sheet Metal

Product Description

Product Description

Product Parameters

Model	STL-6020F
Working area (L*W)	6000*2000mm
X/Y axis Repeated Position Precision	±0.02mm
Laser Generator	Wuhan-JIEPUTE-1kw
Control System	Shanghai Cypcut
Servo motor	YASKAWA SERVO
Cutting head	RayTools BT220
Gantry	Aviation aluminum beam
Guide rail	Taiwan PMI square rail
Rack&pinion	Taiwan PMI famous brand
Speed Reducer	Japan SHIMPO
Water chiller	China Tongfei
Proportional valve	Japan SMC
Electronics	France brand
Voltage	Three-phase 380V 50/60Hz

Certifications

Packaging & Shipping

Company Profile

After Sales Service
FAQ

1.Our Payment Way?
L/C and T/T or other ways.
2.Delivery Time?
30 days after downpayment.We have our own forwarder and we have long term cooperation with each other and have closely relationship with each other.so there is no problem in shipment.
3.Our Warranty?
(1)One year guarantee from the delivery date of this machine under the normal operation of one shift per day.
(2)We will be responsible for the maintenance of damaged part which is under normal situation during warranty period, and all the round-trip courier transportation cost of damaged/repaired replacement parts in warranty period should be borne by the buyer. Wearing parts are not included.
(3)24 hour technical support by email or calling.
(4)User-friendly English manual for machine using and maintaining.
4.Our Services?
(1)One-stop service, meet needs of the customers from individuals to international companies.
(2)OEM service accepted.
(3)After sale Service: experienced and knowledgeable team of technical support, provide engineer oversea service.

---
