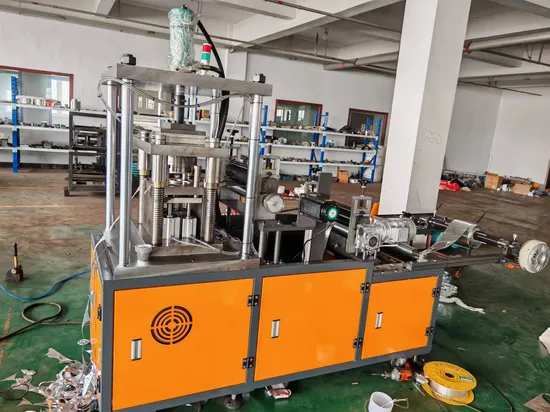

Full Automatic Aluminum Foil Container Forming Machine

Product Description

Products Description:
Automatic Aluminium Foil Container Forming Machine
Model: YT-AL45
Units: Automatic Feeder+Automatic 7Ton Press+Cavities Mould
It fit for all common size Aluminium Foil Container production requested. The Big capacity could to cover big range of size products. Lower power requested than other old model machines.
Specification:
1.Raw material: Aluminum foil; Thickness: 0.030mm ~0.150mm;
Alloy: 8011,8006,3003,3005; Temper O to H24;
2.PLC Touch Screen control system;
3.Max. width of Aluminum foil: 500mm;
4.Max. diameter of Aluminum foil: 600mm;
5.Core diameter of Aluminum foil: 76mm(152mm as Optional );
6.Working speed: 30-40 pcs/min;
7.Total Power: 7.5kw+0.55kw+0.75kw;
8.Compressed air needed: 0.5- 0.8 Mpa, 0.2m3/min;
9.Install dimension: 4000*1200*2200mm;
Technical Data:
Max.mould size: 550*500*700mm ;
Slide block stroke: 120-220mm;
Work plate dimension: 600*650mm;
Power: 4P, 380V or 220V,50Hz /60Hz;
Net weight: 1200kg.

---
