Product Details
Product Description
Product Description

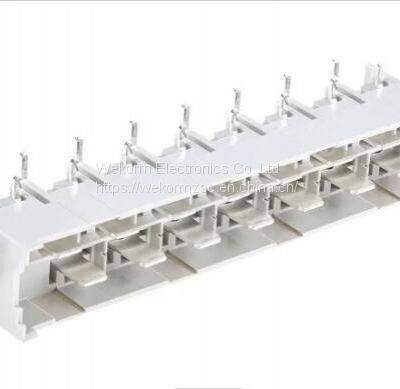

Harting DIN41612 European connector 09061152911
Harting DIN 41615 type H15 high current plug
The high current type H DIN 41612 plug series is offered in 4 styles, all with blades, parallel to the printed circuit board.
469-522:90° PCB mounting with standard contacts
481-954:90 ° PCB mounting with one leading contact (LC), first matched at position Z32
481-960:250 plug with lead contact position Z32, 6.3mm plug end to 2.5mm wire, suitable for 250 gauge socket (without guard)
740-6966:250-pin plug standard contact with 6.3mm pin for 2.5mm2 wires, suitable for 250-gauge receptacles (without guard)
Stock No. 757-7932 Certified by Railway, railway classification NFF 16-101, smoke index: F1, flammability rating: I2
15-way 15A plug with hard silver-copper alloy contacts
Contact resistance up to 8m ω
Thermoplastic resin - fiberglass fill
Harting high current series
A series of DIN 41612 high current 15 -, 32 -, and 48-way positive and negative indirect edge connectors are particularly suitable for control cards and power units that can be integrated into standard subframe systems.
Product technical parameters
Attribute values
Number of contacts 15
Gender male plug
Line number 2
Main positioning Angle
End method welding
Loading of Z/d
Type H15
Pitch 10.16 mm
Installation type Through hole
Contact plating silver and nickel
Grade Assessment C1
Rated current 15A
