China Jinshi Scaffolding Standard Hydraulic Punching Machine Iron Pipe Punch

Product Description

Product details

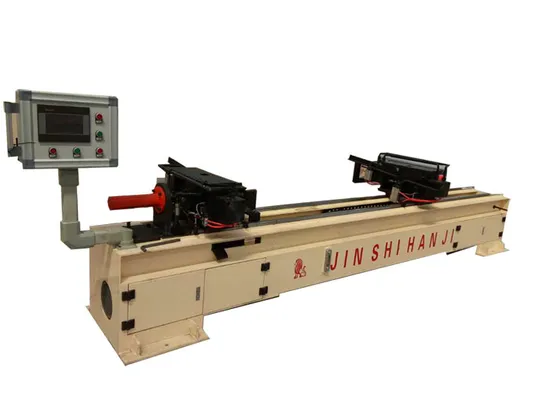

The equipment is used for the stamping equipment of connecting holes at both ends of the scaffolding pole, which can realize the punching at both ends at the same time and ensure the accuracy of the hole position.

Purpose of the equipment:
The equipment is mainly used for punching the pin holes of the vertical rod socket.
Scope of application: (can be customized according to customer requirements)
Round tube length: 1-3 meters. Round tube diameter: #48 and #60. Pipe wall thickness: 2.75-3.25MM.
Punching diameter: #12.
Equipment features:
1, out of the hole without burr, small tube deformation, accurate positioning of pipe fitting, punching concentricity is high, strong stability.
2, adopt PLC+ industrial touch screen mode, man-machine interface; One-button operation, simple operation, convenient, stable and reliable performance, easy to change the punch die.
3. Automatic feeding and unloading. Reduce the labor intensity of the operator.
4, both ends of the punching, fast speed, high efficiency.
Host part

Pneumatic pressure	0.2-0.8MPa
Cylinder pressure	14MPa
Tubing pressure	34MPa
Host size: length * width * height	4300*800*1500

Main configuration

name	Model number
Main engine body machinery	Steel plate, square pipe welding
Hydraulic system Pneumatic system	Tubing, oil cylinder, hydraulic pump, solenoid valve Cylinder, solenoid valve
Electrical control system	Contactor, key switch PLC, touch screen, switching power supply relay
Hydraulic motor	Three-phase induction motor
Guide rail, slide block	Type 35
Punching tooling	Line cutting, CNC milling precision machining

Company honors and qualifications:
Company site:
Corporate office area:
With high quality products and excellent reputation, Golden Lion sells well all over the world, helps enterprises solve production problems, helps enterprises develop, and establishes long-term cooperative partnership with well-known enterprises at home and abroad. Your success is the eternal pursuit of Golden Lion welder! Let us hand in hand, sustainable development, create brilliant!
Frequently Asked Questions
If I have some problems, what should I do?
-You can contact our salesman directly, our engineer will check the problem. We Provide proofing service before sale and free technical training, online technical guidance, video guidance
How long is the warranty?
-We offer a 1-year warranty(except for the consumable parts like Lens). The supplier will provide detailed information as soon as possible.
If you need help, we have a professional team to help you.
If you have other mold needs technical instruction and video instruction are also provided.
Packaging&Shipping
1. Cleaning machine.
2. Wrap all the machine and parts with bubble film and plastic film.
3. Forklift the packed machine to the container.
4. Choose the optimal routes and transportation modes according to the distance.
If you have any questions,please contact us!

---
