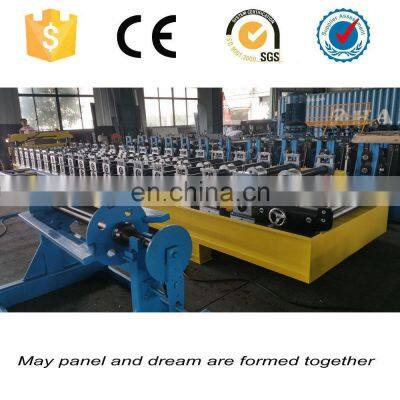

Metal Roofing Sheet Bending Machine
1. Flow Chart
Decoiling-- feeding-- roll forming-- cutting-- product output table
2. Main Equipment
Decoiler, main forming machine, hydraulic system, PLC control system, etc
3. Technical Parameters
1) Mamual inner expansion decoiler
a. Coil inner diameter: 460mm-520mm
b. Max width of coiling: 1400mm
c. Max weight of loading: 5000kg
2) Main forming machine
a. Number of forming steps: 11-18
b. Material of shaft: high grade 45# steel adjustable treatment.
Outer diameter: 75mm
c. Roller material: high grade 45# steel, coate with chrome
d. Main motor power: 5.5kw
e. Forming speed: 10-15m/min
f. Transmission: gearbox transmission
g. Base frame: whole surface is machined by plano miller, to make a very precise base surface
h. Stand structure: bearing seats and pole colums are chromeplated, high quality with good outlook
4. Fully Automatic Control System with PLC, touch screen operation
5. Easy operation: Key in the length and quantity on the control panel
Main Electrical Element Brand
PLC: PANASONIC, Japan
Encoder: OMRON, Japan
Inverter: YASKAWA, Japan
Touch screen: Veinview, Taiwan China
Packaging & Shipping
Seaworthy export standard packing for the machine. All machine parts are well fastened and fixed by blocks and wire ropes.
Normally one machine needs one 40 feet container for shipping.
Our Services
One stop service for customized machineOverseas installation & operating trainingOne year warranty of the whole machineLife-long technical support
Company Information
1. Machine installation & commissioning, training:
1-2 technicians will be dispatched to Buyer’s plant for installation & commissioning. Work period: in 5 days. The expense of round trip tickets, accommodation, safety and interpretation shall be covered by Buyer, additional pay allowance to the technicians.
2. warranty: one year after successfully commissioning
3. Price basis: FOB or CNF or CIF
>>
