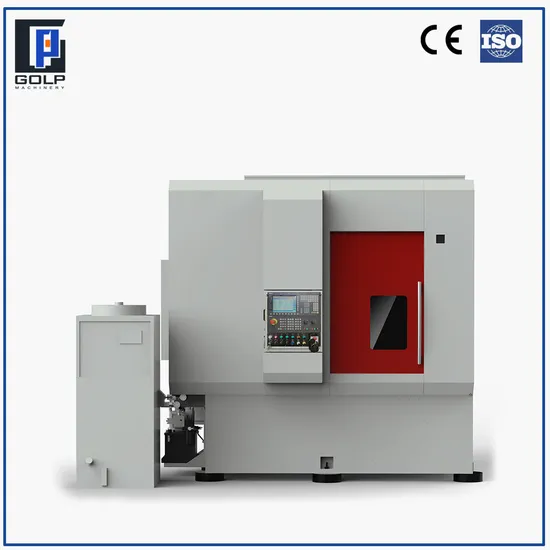

Automated 6 Axis CNC Power Gear Scraper/Scraping /Skiving / Turning Machine for Internal/External / Helical Gears

Product Description

This machine is a six-axis CNC gear skiving machine. The machine has three CNC linear axes: radial feed axis (X-axis); axial feed axis (Z-axis); tangential movement axis (Y-axis). Three CNC rotary axes: tool rotary axis (C1 axis); table rotary axis (C2 axis); tool holder rotary axis (A axis). Four-axis linkage control can be realized.
1. Processing internal and external straight teeth, helical teeth, etc;
2. internal and external teeth processing software;
3. have micro-bevel teeth, drum-shaped teeth, K-type teeth special processing software;
4. good rigidity, stable precision, high efficiency, easy to operate;
5. the machine adopts full digital control, adopts Siemens 828D system. And with EGB electronic gear box, it replaces the function of ordinary machine tools to exchange various gears. Through the software control can realize the internal gear, external gear, helical gear and other process switching, but also can realize the drum, taper and additional asymmetric features of the gear processing, but also can be applied to the scraping processing of the hard tooth surface, can be partially replaced by the grinding process, especially the internal gear grinding.

No.	Items	Parameters	Unit
1	Max workpiece diameter	Ф300	mm
2	Max module	4	mm
3	Horizontal distance from center of tool mounting surface to table center	0~300	mm
4	Vertical distance from center of tool mounting surface to table surface	196~546	mm
5	Tool spindle speed range (C1 axis)	1~4000	rpm
6	Table speed range (C2 axis)	1~2000	rpm
7	Radial rapid traverse speed (X-axis)	10000	mm/min
8	Tangential speed (Y-axis)	5000	mm/min
9	Axial rapid traverse speed (Z-axis)	10000	mm/min
10	Tool spindle motor power (C1 axis)	41.9	KW
11	Table spindle motor power (C2 axis)	41.6	KW
12	Tool interface	HSK100
13	Machine footprint (LxWxH)	372x290x290	cm
14	Total machine weight	12500	Kg

standard configuration

Main machine	Six-axis control
CNC System	SINUMERIK 828D
Hydraulic station
Hydraulic valve
Centralized intermittent lubrication system
Key bearings
Ball screws
Linear guides
Main seals
Cabinet Air Conditioning
Spindle motor cooling air conditioning
Pneumatic components
Air filters
Automatic magnetic chip conveyors and chip accumulators
Cooling boxes
Machine guards	Fully enclosed
Machine lighting and box lighting	Includes tri-color lamps
Tool holders

gear measuring machine
You can click on the image above for details.
WUXI GOLP CNC MACHINERY CO,.LTD is located in WUXI-- the core location of the Changjiang Delta which is the most dynamic economy area in China. We are a new brand company specializing in the CNC machine tool industry. The company is mainly engaged in CNC grinding machine,Die-casting machine, gear grinding machine ,gear chamfering machine ,thread turning machine,CNC Punching machines, gear measuring centering machine and other new intelligent machine and related supporting products. The company adheres to the business philosophy --Professional quality, Credibility first, Customer first, and is committed to the development goal of becoming an important member of the global market in the field of intelligent machines.
Q:What's your payment terms?
A:T/T,L/C,Paypal,Western Union etc.
Q: How long is the product warranty?
A: 24 months
Q: Are you a trading company or a manufacturer?
A: We are a professional manufacturer. Our products have been exported to Asia, South America, Africa, and have developed a good world wide reputation.
Q: What kind of product certification do you have?
A: All our products have passed ISO9001 and CE certifications. We have strict quality inspection process before leaving our factory in order to offer the best quality machines to our customers.
Q: Do you have after sales service?
A: Yes, we have special service team which will offer you professional guidance, or On-site installation in customer Factory.
Q: Do you test all your goods before delivery?
A: Yes, we have strict quality inspection process including a load test for every machine before leaving our factory.

---
