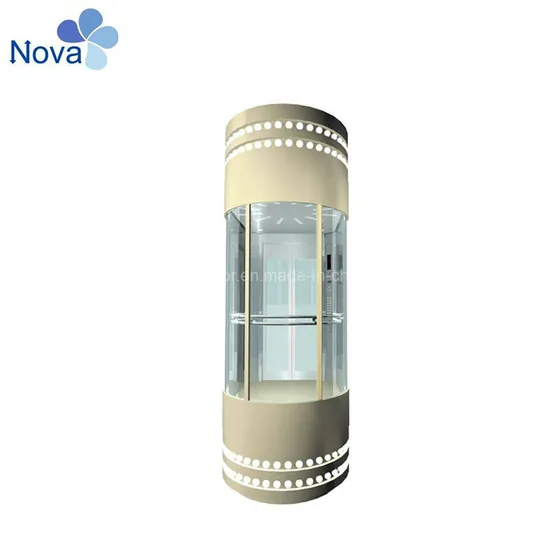

Nova Standard Modern Complete Observation Lift Elevator for 10 Persons

Product Description

Small machine room passenger lift
1. Permanent magnet synchronous gearless motor
2. Energy feedback technology
3. LED car lighting and LED automatic lighting
Machine roomless passenger lift
1. It effectively utilizes the space
2. It saves the building cost
3. It brings about infinite freedom to the architectural design
Elevator technical parameter table(MR elevator)

Model	Capacity	Persons	Speed	Cabin		Net opening size		Shaft		Overhead Height	Pit Depth
				CW	CD	JJ	HH	HW	HD	OH	PH
TKJ450/0.63	450	6	0.63	1100	1100	700	2100	1600	1700	4400	1400
TKJ450/1.0			1							4500	1400
TKJ450/1.5			1.5							4600	1500
TKJ630/0.63	630	8	0.63	1400	1100	800	2100	1900	1700	4400	1400
TKJ630/1.0			1							4500	1400
TKJ630/1.5			1.5							4600	1500
TKJ630/1.75			1.75							4700	1600
TKJ800/1.0	800	10	1	1400	1350	800	2100	1900	1950	4500	1400
TKJ800/1.5			1.5							4600	1500
TKJ800/1.75			1.75							4700	1600
TKJ800/2.0			2					2000	2150	4900	1700
TKJ800/2.5			2.5							5100	1900
TKJ1000/1.0	1000	13	1	1600	1400	900	2100	2100	2000	4500	1400
TKJ1000/1.5			1.5							4600	1500
TKJ1000/1.75			1.75							4700	1600
TKJ1000/2.0			2					2200	2200	4900	1700
TKJ1000/2.5			2.5							5100	1900
TKJ1250/1.0	1250	16	1	1900	1500	1100	2100	2400	2200	4500	1400
TKJ1250/1.5			1.5							4600	1500
TKJ1250/1.75			1.75							4700	1600
TKJ1250/2.0			2					2500	2400	4900	1700
TKJ1250/2.5			2.5							5100	1900
TKJ1600/1.0	1600	21	1	2000	1750	1100	2100	2500	2450	4500	1400
TKJ1250/1.5			1.5							4600	1500
TKJ1250/1.75			1.75							4700	1600
TKJ1250/2.0			2					2600	2650	4900	1700
TKJ1250/2.5			2.5							5100	1900

Related Products
·Shaft Components includes
Machined /Cold Drawn/ Hollow Guide Rail, Fishplate, Fasteners, Anchor Bolt, Rail Rracket etc.
·Elevator Cabin includes
Complete Elevaotr Cabin, Car Frame, Counterweight Frame and Counterweight Block,Guide Shoes, Rope Attachment etc.
·Door System includes
Mitsubishi, Fermator and Selcom Door Operator and Landing Door, Door Panel, Door Spare Parts,Safety Light Curtain/Photocell etc.
·Safetey Components includes
Safety Gear, Speed Governor, Rope Brake, Oil Buffer and Rubber Buffer etc.
·Traction System includes
Geared/Gearless Traction Machine, Pulley Sheave,Anti-Vibration Pad,Steel Wire Rope etc.
·Electrical Components inclueds
Integrated and Separated Controlling Cabinet,Yaskawa L1000A Inverter, Elevator Display,COP&LOP&HOP, Elevator Button, Flat Traveling Cable etc.
Company Information
Packaging & Shipping
FAQ
1. Price
Re: please send us inquiry from Made in China, we will qutoe to you within 24 hours. It's more convenient and appreciated for us if you provide your company details and your detail inquiry for with elevators.
2. Payment term
Re: T/T or L/C at sight.
3. Installation&Maintaining
Re: We will send installation&maintaining manual along with the with elevator.
Our sugguestion is to hire a professional local company for installation and future maintaining,
once you need any technical assistant from us, just don't hesitate to contact us by mail or phone.
Technician will be sent to the job site if necessary.
4. Shipping&price term
Re: Both FOB/CIF/CFR price term are ok, we have reliable forwarder helping arrange the shipment for you.

---
