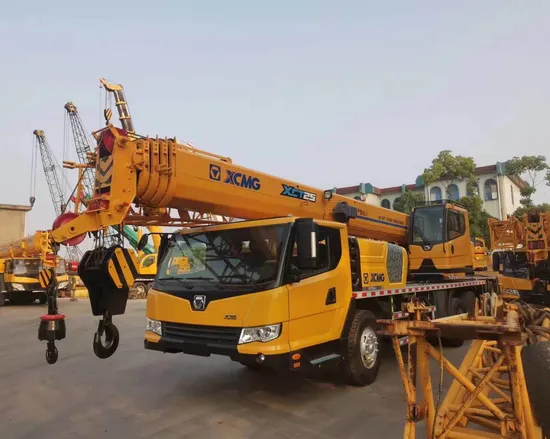

China Used Construction Lifting Equipment Hydraulic Truck 25t Mobile Truck Crane

Product Description

Product Description Used Heavy Truck Mounted Cranes XCT25L5 25ton Mobile Truck Crane truck crane is widely used for the lifting operations in Oilfields, mines, general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments.
XCT25L5 model:
The maximum rated load is 25 tons;
Maximum lifting height - basic arm 11.2 m, full arm 42.8 m;
The maximum lifting height - basic arm + auxiliary arm is 51.1 meters;
Lifting arm length - basic arm 10.8 meters, full reach arm 43 meters, basic arm + secondary arm 52 meters;
The maximum lifting speed of the main winch is 135 m/min.
The maximum lifting speed of auxiliary winch is 135 m/min.
Boom amplitude change time is 35 seconds;
Engine chassis Engine model SC9DF320Q5 or MC07.31-50;
Rated power is 235/228 kW;
The maximum driving speed is 90 km/h;
The minimum turning radius is 10.5 m;
The maximum climb is 45%;
Approach Angle/departure Angle is 12/14 degrees;
The total length of the machine is 13000 mm, the full width is 2550 mm, the full height is 3500 mm;
Wheelbase 4600+1350 mm;
Working weight is 33.4 tons;
The leg span is 5.6 m (longitudinal) x 6.4 m (lateral).

---
