US$3,000.00-4,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Application
Leather Industry, Domestic, Carpentry, Printing & Packaging, Construction Industry, Molds & Dies, Crafts Industr, Advertising Industry, Garments
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Automatic Grade
Automatic
Applicable Material
Nonmetal
Laser Classification
Gaseous Laser
Engraving Method
Vector Engraving
Engraving Machine Type
Laser Cutting Machine
Usage
Signage, Garments, Craft, Advertising, Textiles
Transport Package
Plywood Box
Production Capacity
1000set / Year
Packaging & Delivery
Package Size
196.00cm * 156.00cm * 130.00cm
Package Gross Weight
400.000kg
Product Description

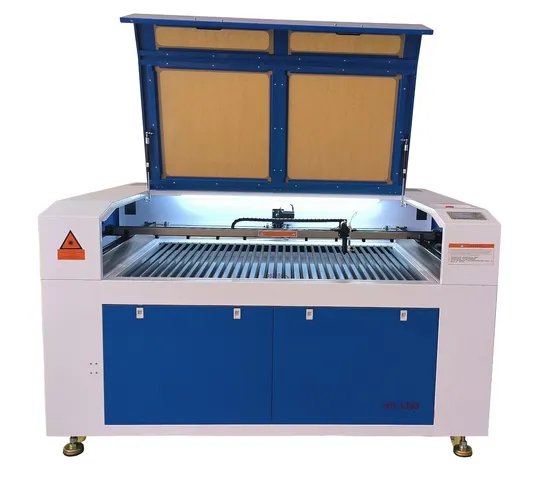

Machine Feature:
1. The machine body applied with most solid design which can ensure no deformation long time operation and transportation.
2. The machine fixed with LEADSHINE brand stepper motor and driver, linear guide and strong belt running system.
3. Adpots with adanced DSP control technology, fixed with high quality electronic parts, ensure high cutting engraving speed,
high accuracy and high stability, long time usage life.
4. Applied with imported lens and reflector mirror, ensure high laser power efficiency.
5. The machine connect with computer by USB/ INTERNET wire or U disk directly.
6. With water cooling system, exhaust fan and water pump, etc.
7. It have cutting and engraving function, it have half-cut function.
Laser cutting machine specification:
| Laser source | Wave Length(µm) | 10.6 |
| Optional Power ( w ) | 60w, 80w, 100w, 130w, 150w |
| Cooling | Water Cooling |
| Working Para. | Working Area ( mm ) | 600X400 | 900X600 | 1000X800 | 1300X900 | 1400x1000 | 1600X1000 | 1800X1000 |
| Min. Line width ( mm ) | 0.15 ~ 0.3 |
| Working speed ( mm/M ) | 0 ~ 36 |
| Repeat position precision (mm) | ±0.05 |
| Compatible format | PLT, DXF, AI, DST, DSB, JPG, BMP, GIF |
| Power | AC220V ± 10%, 50/60HZ |
| Dimension (cm ) | 120X100X115 | 150X120X115 | 160X140X115 | 190X150X115 | 200x160x115 | 220X160X115 | 240X160X115 |
| Net Weight/ Gross weight ( kgs ) | 180 / 250 | 270 / 350 | 300 / 400 | 350 / 450 | 400/500 | 450 / 550 | 500 / 600 |
| Working environment | 0 ~ 40ºC, clean and no-dust room, without water |
| Others | total power(w) | <1500 |
| protection class | IP54 |
| Laser safety class | 4 class |
MACHINE DETAILS
Applicable industry:
Advertising, signage, gifts, garments, shoes, bags, curtain, model, home furnishing, decoration, label, electronical etc industry,
Suitable materials:
acrylics, wood, paper, bamboo, fabric, cloth, leather, shoe bottom, woollen, plastic, ABS, resin, ceramic, and other nonmetal materials.
MAIN MACHINE ACCESSORY
FACTORY INDRODUCTION:
Professional laser machine factory, have more than 10years experience in production of laser equipment.
Applied with high quatiy spare parts, with strict requirement of installation, tuning and testing, that make sure every machine set stabl, long time usage life.
We supply full series of laser cutting machine, CO2 marking machine, fiber marking machine etc.
Aftersales service
1. Whole set machine with 1 year warranty, except consumable parts as laser tube, lens etc.
Lifelong maintainance and repairing support service.
2. Profesional technical team support by email or online timely, free software update.
3. If need, we can send technician to cuostomer local place to supply service and support.
>>
