| Negotiable | 1 Set (MOQ) |

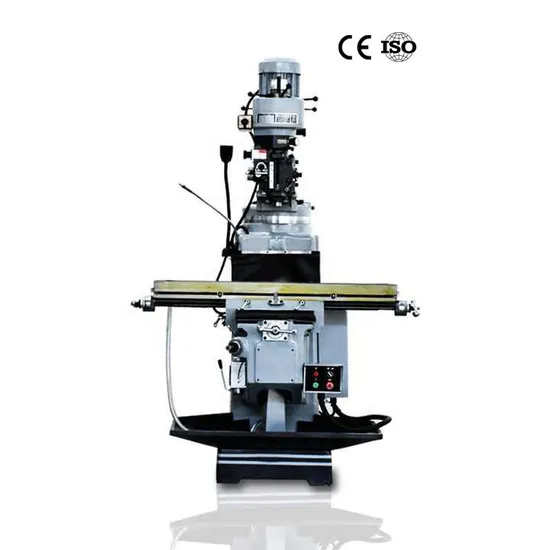

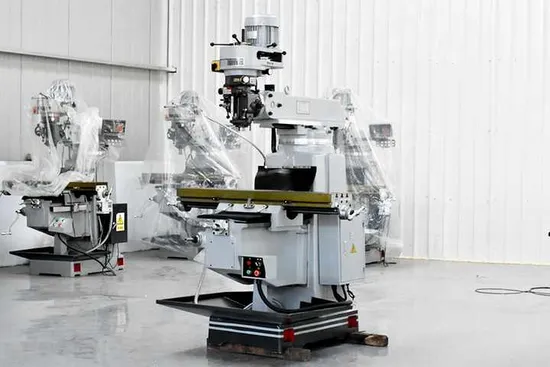

| Turret Milling Machine X6325,X6325A,X6325B Feature |
| ·Heavy, solid model made of high-grade casting |
| ·All axes with adjustable dovetail slideways |
| ·Mill head can rotated and tilted |
| ·Adjustable gibes on table |
| ·Accurate position, good rigidity, big cutting power |
| ·Automatic spindle sleeve feed |
| Specifications | X6325 | X6325A | X6325B | |
| Table size | 254x1270mm(10"x50") 254x1370mm(10"x54") | |||
| Table travel | Longitudinal | 820/920mm | 800/900mm | 820/920mm |
| Cross | 410mm | 380mm | 380mm | |
| Vertical | 400mm | 350mm | 350mm | |
| T-slot No. and size | 3x16 | 3x16 | 3x16 | |
| Ram travel | 470mm | 470mm | 470mm | |
| Distance from spindle nose to table surface | 0-400mm | 0-400mm | 0-400mm | |
| Spindle taper | Standard R8(ISO30/ISO40 optional) | |||
| Spindle travel | 127mm | 127mm | 127mm | |
| Spindle speed | 50HZ | (16 steps) 65-4500rpm | ||
| 60HZ | (16 steps) 80-5440rpm | |||
| Optional | Variable 60-4200rpm | |||
| Auto quill feed | 0.04/0.08/0.15mm/rev(0.0015"/0.003"/0.006"/rev) | |||
| Spindle motor | 2.25KW(3HP) | 2.25KW(3HP) | 2.25KW(3HP) | |
| Head swivel right to left | 90° | 90° | 90° | |
| Head tilting front to back | 45° | 45° | 45° | |
| Net weight | 1320kg | 1280kg | 1320kg | |
| Standard Accessories | Optional Accessories | ||
| Draw bar | X/Y/Z axis power feed | ||
| Tool box and tools | Air drawbar system | ||
| Working lamp | Clamping kit | ||
| Electric box | Mill chuck set | ||
| Handle oil pump | Coolant system | ||
| Chip tray | |||
| Hang up panel | |||
| Automatic lubrication oil pump | |||
| 3 axes with ball screws | |||
| Spindle protection with power off | |||
| Worktable protection with power off | |||
| DRO | |||
| Vice |
