Strong Hydraulic Pile Hammer for Construction Machinery and Piling Tasks

Product Description

Product Description
Detailed Photos

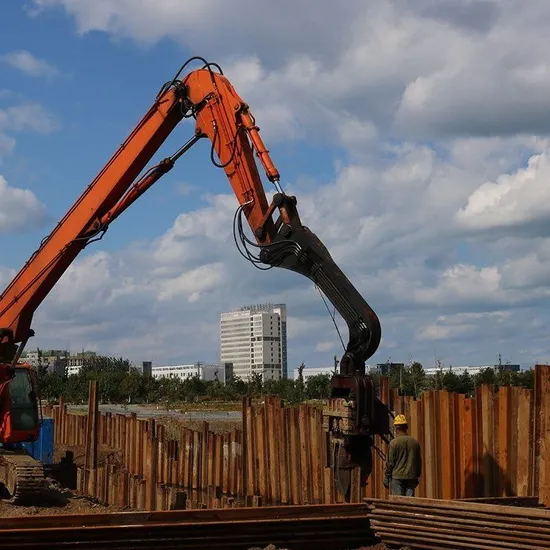

Hydraulic pile driver working principle and engineering application scope High frequency hydraulic vibratory pile driver is using vibrating pile sinking to drive or extract piles. It is especially suitable for municipal, bridges,cofferdam, building foundation etc. such short pile projects. Pile Driver Application The efficient of vibration pile method is higher than other methods. It is mainly are fit for driving and extracting sheet piles, I-steel piles, Cement square pile,cylinder pile, larsen piles in various shapes. This pile driving method is the most suitable for working in sand and poorer effect in the clay which must select higher power model machines.

Excavator use Juxiang S350 Sheet Pile Vibro Hammer Short Description: 1. Perfectly designed for 20-ton excavators, ensuring seamless operation.
2. Enhanced with a premium Parker motor and high-quality brand bearing for superior performance.
3. Delivers robust and consistent vibrations up to a formidable 360KN, achieving a swift piling speed of 7.5m/min.
4. Boasts a strong and durable main clamp, meticulously crafted through precision casting.
The S350 strikes an ideal balance between size, flexibility, and efficiency, making it perfect for a variety of construction projects.

Product Parameters

Model	Unit	S350	S500	S600	S650	S800
Vibration Frequency	Rpm	3000	2800	2800	2700	2400
Eccentricity Moment Torque	N.M	36	52	70	83.5	126
Rated excitation force	KN	360	450	600	650	800
Hydraulic system pressure	Mpa	32	32	32	32	32
Hydraulic system flow rating	Lpm	250	240	315	310	310
Maximum pile length (m)	m	6-9	6-15	6-18	6-18	6-22
The auxiliary arm weight	Kg	800	800	900	900	1000
Total Weight	Kg	1750	2750	3200	3200	3600
Suitable Excavator	ton	18-25	27-37	36-50	42-50	50-70

Certifications
Packaging & Shipping
To ensure the utmost safety of your goods, we provide professional, eco-friendly, convenient, and efficient packaging services.
Packaging details: Secure export wooden box packaging or as per customer specifications.
Delivery Details: Shipping is completed within approximately 20-30 working days after payment confirmation.
Each product undergoes rigorous testing before delivery to guarantee impeccable quality. We take full responsibility for ensuring our machines meet high standards. Products are then loaded onto container trucks and transported to the port.
Our Advantages
Our product is compatible with various excavator brands, and we have built long-term, stable partnerships with several renowned brands.
Pile Hammer How to Work?
The vibrating pile hammer utilizes high-frequency vibrations to shake the pile body with high acceleration. This process transmits vertical vibrations to the pile, altering the soil structure around it and reducing its strength. The soil around the pile becomes liquefied, decreasing the frictional resistance between the pile's sides and the soil. Meanwhile, the excavator's downward force, combined with the vibrating pile hammer and the pile's weight, drives the pile into the soil. For pile extraction, the pile is vibrated and lifted using the excavator's lift force. The excitation force required is determined by factors such as site soil, soil condition, moisture content, and pile type, ensuring optimal performance for diverse construction scenarios.
FAQ
1. Q:How to chose the suitable model?
A: Please kindly advise your excavator weight or model, then we will help you to decide the suitable model.
2. Q: Is your vibro driver dangerous for work?
A: Our machine operate contact-free and there is no impact force on the drill rod, so our machine is not dangerous for work.
3. Q:Is your size can be custome made?
A:Yes, we can custom made according to your requests.
4. Q:Do you offer after-sale service?
A: Yes, we will offer you machine operation instructions. 6 months of warranty time for the motor will be offered to our customer dating from the receipt day. Besides, we will offer life long technical instruction.
5.Q:How To Order:
1. Please tell us the model with quantity and other requirement which you needed.
2. We issue the Proforma Invoice to you after confirmed the price and other details.
3. We arrange the order production upon receipt of confirmed PI and your deposit or original L/C.
4. After the goods is ready to ship, we will inform you the shipment date and other informations by email at the same time.
5. We will help to track your goods until you receive them safely.

---
