Mini 4-Channel IP ADAS DMS BSD GNSS Tracking 4G LTE GSM 720p AI AHD CCTV Kit Mobile DVR Recorder with GPS and Camera System for Vehicles, Cars, Buses, Trucks

US$160.00 50 Pieces (MOQ)

Basic Info.

Model NO.
MD500S
Certification
CE
Warranty Time
One Year
Stream Type
Video Flow
Input Channels
4
Brand
Meitrack
Dimension
120 mm X 70 mm X 25 mm
Weight
300g
Storage Medium
Micro SD Card-up to 256 GB
Power Supply
DC: 11-36 V. Rated Input: 12 V/2 a
Gnss
GPS/Beidou/Glonass
Sensor
Built-in 3-Axis Accelerometer
Audio Compression
Acc
Transport Package
Box
Trademark
Meitrack
Origin
China

Product Description

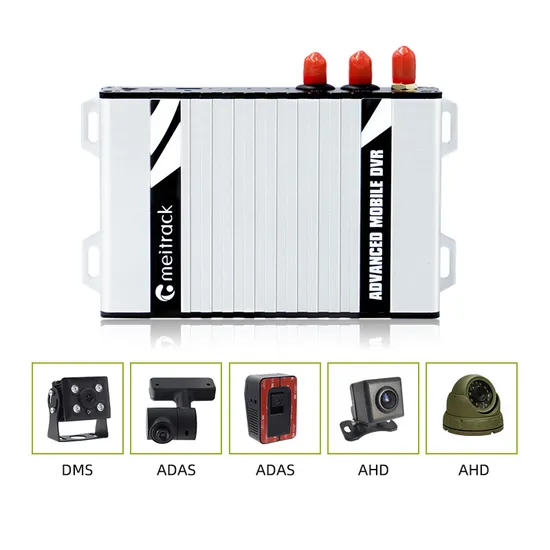

Meitrack Mini AI Mobile DVR MD500S
Product Overview
Specifications
Dimension120 mm x 70 mm x 25 mm
Weight300g
Power inputDC: 11-36V. Rated input: 12 V/2 A
Power consumptionStatic working mode: 65 mA
Normal working mode: 600 mA (Maximum: 1100 mA)
Sleep mode: 15 mA
Operating temperature-20°C to 70°C
SensorBuilt-in 3-axis accelerometer
Storage mediumUp to 256 GB (a class 10 or above micro SD card)
Operating systemAndroid
Audio interface3.5 mm audio interface, connected to the speaker or microphone.
Video inputSupport 1-channel DMS, 1-channel ADAS, and 2-channel 720p cameras
Voltage output: 5 V/0.5 A
ResolutionStorage stream: D1 (704*576), WD1 (960*576), and 720p (1280*720)
Live stream: CIF (352*288) and D1 (704*576)
Video compressionH.264 (Support RTMP and AVMSG video streams)
Audio input4-channel camera Mic input
1-channel 3.5 mm headphone jack input
Audio output1-channel 3.5 mm headphone jack output
Audio compressionACC
Video search and playbackBased on the channel, recording type, bit rate type, or time
Recording methodGeneral recording/alert video
WiFiInternal WiFi module. Support WiFi 802.11a/802.11b/802.11g/802.11n/802.11ac.
Frequency: 2.4 GHz or 5 GHz. Support AP/STA mode.
BLESupport BT2.1 + EDR/3.0/4.1 LE/4.2BLE
GNSSGPS/BeiDou/GLONASS
3G/4GMD500-E:
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28
LTE TDD: B38/B39/B40/B41
WCDMA: B1/B2/B4/B5/B8
GSM: 850/900/1800/1900MHz
MD500S-A:
LTE FDD: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B66/B71
LTE TDD: B41 , WCDMA: B2/B4/B5
MD500S-J:
LTE FDD: B1/B3/B5/B8/B11/B18/B19/B21/B26/B28
LTE TDD: B41
WCDMA: B1/B6/B8/B19
MD500S-W:
Only the GNSS, WiFi and Bluetooth functions are supported, and LTE is not supported.

Accessories
ACCESSORIESMD500S MDVR
I/O cable
A57 speaker
A58 microphone
Audio cable
GPS antenna
4G antenna
WiFi antenna
CD download card
OPTIONAL ACCESSORIESCamera of the ADAS
Camera of the DMS
AHD 720P camera
A61 temperature sensor box
A52 digital temperature sensor
A53 fuel level sensor
USB cable
Relay
iButton reader
BLE ultrasonic fuel level sensor

Certificates: CEMeitrack MS03 Advanced GPS Tracking Software
MMS03 is a professional centralized software that is tailor-designed to support businesses and sustainable platforms, ideal for
developers. The MS03 spotlights such features as GPS Tracking, Video Surveillance, and Alarm Systems amongst others.
Contact us to get a free demo!
Case StudyCity Buses
MD522S | Mexico
The Mexican government introduced Meitrack's MDVR bus management solution to guarantee the safety of Mexican residents, ensure a safe bus travel, and prevent illegal activities inside buses. In this project, Meitrack MD522S, camera, LCD display, SOS button, A91 passenger flow sensor and MS03 tracking platform work together to provide a one-stop internal bus monitoring solution.
Armored Vehicles
MD511H | Malaysia
Inside an armored bank vehicle, a MD511H mobile DVR is connected to four cameras. The video surveillance solution only allows
authorized staff to start the vehicle. If the vehicle door is opened without permission or the vehicle is hijacked, the monitoring
center can quickly and efficiently keep track of what's happening inside the vehicle, remotely cut off the en gine to prevent the
vehicle from moving, and take immediate action to minimize the loss.
