Product Details
Product Description
Product Description
FEATURES

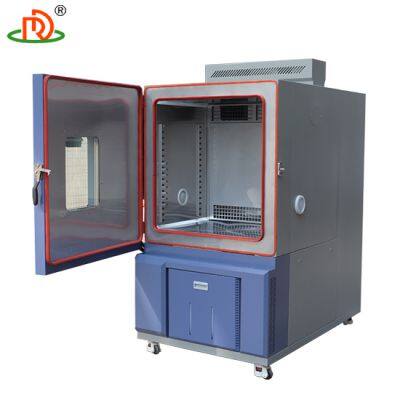

Rapid-rate Thermal Cycle Chamber Equipment Perfect appearance and easy to operate.
Japan LCD English microcomputer temperature controller, with high memory capacity, can save 100 programs, max 9999 cycles, each cycle max time 999hrs.
Three chamber structures, high temperature chamber, low temperature chamber and test chamber, control automatically, stay and switch time adjustable.
Perfect protection alarm functions: short-circuits, Leakage, over temperature of work chamber; compressor over pressure, over load, short water…
Control interface will display alarm reason and provide check methods, machine has emergency stop button.
Cold and hot shock temperature recover within 5 minutes, which complies withMTL, IEC, JIS, GJB and other international standards.
With RS-232C communication port for connecting PC to control, record and save test report.
SPECIFICATIONS
Item
| Specification
|
Internal dimension(W*D*H)
| 800*600*850mm
|
External dimension(W*D*H)
| 1050*1510*1896mm
|
Working capacity
| 408 liter
|
Internal chamber material
| SUS#304 stainless steel, mirror finished
|
External chamber material
| Stainless steel with paint spray
|
Temperature range
| -70℃~+180℃
|
Temperature fluctuation
| ±1C
|
Humidity range
| 10%~98%RH
|
Humidity fluctuation
| ±2.5%RH
|
Humidity uniformity
| 3%RH
|
Sample tray
| SUS#304 stainless steel, 2pcs
|
Observation window
| Tempered glass: 250*300mm
|
Testing hole
| Diameter 50mm, for cable routing
|
Power supply source
| Three-phase, 380V, 50Hz
|
Safety protection device
| Protection for leakage
Over-temperature
Compressor over-voltage and overload
Heater short circuit
|
>>
