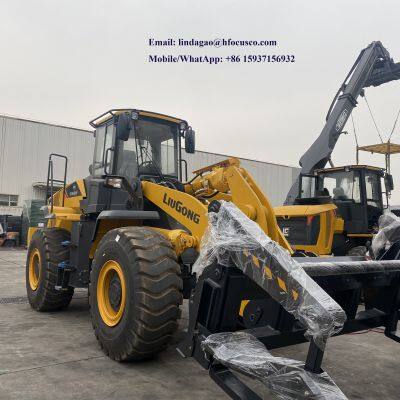

3tons Wheel Loader (930F) with 1.6 Cbm Bucket for Sale
Feature of 3 tons mini wheel loader 930F :
930F loader is a high-end product mainly for loading and unloading loose materials.
The entire machine is compact, flexible in operation, of high working efficiency, more suitable for operation in narrow and small field and is widely used in places such as farms, timber yard and municipal construction.
1. It is equipped with the Weichai 4102 Turbocharged engine meeting the requirements of China II emission standard, with strong power, low noise and reliable performance.
2. Single-stage three-element hydraulic torque converter and axis-fixed transmission case are used, with high reliability and are convenient for maintenance; SWGM reinforced drive axle is configured, with large bearing capacity, long service life and high reliability.
3. Load-sensing full hydraulic steering system is used, with light and quick steering and reliable energy saving properties; Pilot-control working device hydraulic system is used, with high operating efficiency and is light and easy to operate.
4. It adopts front and rear reinforced frames that have passed 200,000 times of fatigue enhancement tests, with strong bearing capacity, reasonable entire-machine load distribution and good stability.
5. New steel structure cab is adopted, which ensures wide vision, a larger operation space, good sealing performance; the air conditioner can be installed optionally, which ensures good comfort.
6. Electrical system adopts high-end and mature electrical apparatus element, which makes it stable and reliable.
7. Bucket is made of protruding type cutting board. The bottom antifriction plate is thickened, with little cutting resistance, high coefficient of fullness and high reliability.
Main Technical Parameter of 3 ton mini wheel loader 930F :
| Model | 930F |
| Bucket capacity | 1.6m³ |
| Rated load | 3000 kg |
| Wheel base | 2350mm |
| Wheel tread | 2150mm |
| Min.ground clearance | 380mm |
| Max. dumping height | 3500 mm |
| dump distance | 1080mm |
| Total times | 9s |
| Operation weight | 7000kg |
| Engine model | HUAFENG4108 Turbo-charged |
| Rated power/ speed | 83kw/2400 rpm |
| Overall dimension(L*W*H) | 6500*2160*3050mm |
| Tyre | 16/70-24 |
Standard Equipments:
Standard Bucket, aggravate frame, overstriking hydro-cylinder,non-slip tank,wheel bridge,luxury cabin , adjustable seat,boom damping system,Tipping Cabin, Quick Hitch, radio,safety belt,Mechanical Joystick, Disc-Brake,16/17-20tyre , Mechanical Joystick,
Adjustable Steering Wheel,130W Heater, 220 V Engine Heater,single joystic operaton,
radio,automatic operation,Hydraulic torque converter drive,fuel tank cap with keys.
>>
