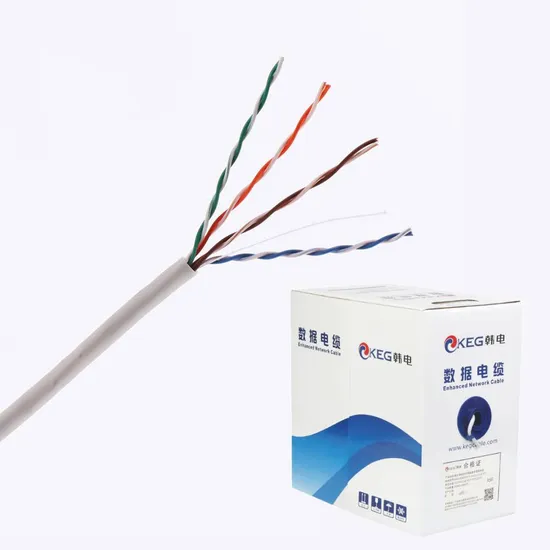

0.48 mm 0.5mm Cu 305m Twisted Pair UTP Cat5e Data LAN Cable for Network Communication

US$65.00 100 Boxes (MOQ)

Basic Info.

Model NO.
Cat5e Data Lan Cable
Cover Material
PVC/LSZH
Type
Cat 5
Conductor Type
Solid
Wire Core Material
Bare Copper Wire
Certification
CE, ISO, RoHS, CCC, VDE
Model
Cat5e Cable
Brand
OEM
MOQ
10km
Lead Time
3~4weeks
Conductor Dimension
0.45mm/0.48mm/0.50mm
Number of Conductors
8
AWG
24
Frequency
100 MHz
Color
as Client′s Requirement
Length
100/ 305/500m
Conductor Elongation Ratio
≥15%
Working Temperature
-20ºC to +60ºC
Bending Radius
≥10×out Diameter
Linear Resistance
≤9.5Ω/100m
Jacket Diameter
5.2±0.5mm
Jacket Elongation Ratio
≥125%
Price
Competitive
Transport Package
305m Pull Box
Specification
CAT5E Lan Cable
Trademark
KEG
Origin
Ningbo, China
HS Code
8544491100
Production Capacity
70, 000 Boxes/Month

Product Description

1. CAT5e UTP Cable 24AWG 0.45mm/0.48mm/0.50mm BC
2. Meets All International Standards
3. Ideal for Network Engineering 4.100% Solid Copper Conductors Ningbo Handian Cable is a professional cable manufacturer to make bulk cable and patch cord for more than 20years.
We are the TOP 3 in the network lan cables business in Ningbo city.
Our cables are compliance with all international standard and have all necessary certificate:
ETL, Delta, GHMT, CE, IQNet, 3C, EU CPR, UKCA etc.
Our production capacity is more than 60,000 boxes per month.
1. All of our Brand are KEG or OEM Brand;
2. All of products we offer are high quality and competitive price;
3. Payment : T/T,L/C etc.
4. Packing :100m coil, 305m/easy pull box, 305m/reel insdie box, 305m/wooden drum, 500m/1000m/ wooden drum etc.
