Manufacturer 1.6-3.5 Ton Electric Forkift New Small 2 Ton Lead-Acid Cell Lithium Battery Forkift Electric Warehouse Forklift Mini Electric Forklift

Product Description

Product Parameters

Model			CPDE16	CPD16	CPDE20	CPD20	CPD25	CPD30	CPD35
Power type			Battery	Battery	Battery	Battery	Battery	Battery	Battery
Rated load		KG	1500	1600	2000	2000	2500	3000	3500
Load center distance		mm	500	500	500	500	500	500	500
Driving type			Seat	Seat	Seat	Seat	Seat	Seat	Seat
Length	With fork L1	mm	3040	3040	3120	3380	3550	3850	3850
	Without fork L2		1970	1970	2050	2310	2480	2780	2780
Whole Width B			1000	1000	1050	1150	1180	1270	1270
Height	Height no lifting frame		1960	1960	2000	2000	1995	2070	2070
	Top frame height		2010	2010	2000	2145	2210	2205	2205
	Max Height working		4050	4050	3850	3995	4100	4055	4055
Distance from seat to top light			1000	1000	1020	1020	1070	972	972
Wheel base L4			1260	1260	1400	1515	1650	1830	1830
Front overhang Y			385	350	320	483	410	475	475
Back overhang L5			365	365	330	400	420	490	490
Front wheel tread R			1010	1010	880	970	1000	996	996
Back wheel tread P			100	100	830	950	945	968	968
Min Floor clearance F			130	130	100	135	110	115	115
Max lifting height H			3000	3000	3000	3000	3000	3000	3000
Free lifting height H4			40	40	80	170	150	145	145
Fork changing S			1040/200	1040/200	925/200	1024/200	1024/200	250~1100	250~1100
Min Turning radius			2100	2100	1950	2050	2285	2500	2500
Min Right angle aisle width			3850	3850	3400	3760	3995	4275	4275
Frame angle a/β		(°)	6/12	6/12	6°/12°	6°/12°	6°/10°	5°/10°	5°/10°
Max lifting speed load		mm/s	300	300	350	400	280	350	350
Max lifting speed unload			260	260	300	300	260	280	280
Max speed load		Km/h	14	14	15	15	14	15	15
Max speed with unload			13	13	14	14	13	14	14
Max climbing angle		%	≤15	≤15	≤10	≤15	≤15	≤15	≤15
Service weight		Kg	2650	2790	3200	4050	3650	4000	4150
Driving Wheel			2/2	2/2	2x/2	2x/2	45324	45324	45324
Tyre model			Solid tyre	Solid tyre	Solid tyre	Solid tyre	pneumatic tyre	pneumatic tyre	pneumatic tyre
Front Tyre			18×7-10	18×7-10	18*7 -10	7.00-12	6.50-10	28x9-15	28x9-15
Rear Tyre			16×6-8	16×6-8	18*6-8	18x7-8	18×7-8	18x7-8	18x7-8
Brake type			Hydraulic Pedal	Hydraulic Pedal	Hydraulic Pedal	Hydraulic Pedal	Hydraulic Pedal	Hydraulic Pedal	Hydraulic Pedal
Hand Brake			M-Hand	M-Hand	M-Hand	M-Hand	M-Hand	M-Hand	M-Hand
Battery Volt/ capacity		V/Ah	48V/230	48V/320	48/400	48/500	48/300	80V/300	80V/300
Driving motor power		Kw	6.5AC	6.5AC	7.5AC	11AC	7.5AC	10AC	10AC
Pump power			5.5DC	10AC	10AC	12.0AC	10DC	12DC	12DC

Product Description YEAWEY lithium battery forklifts improving the performance of the products, expanding the optional battery capacity, optimizing the internal structure, and adopting a series of mature components, which can meet the requirements of more complex and high-intensity work.

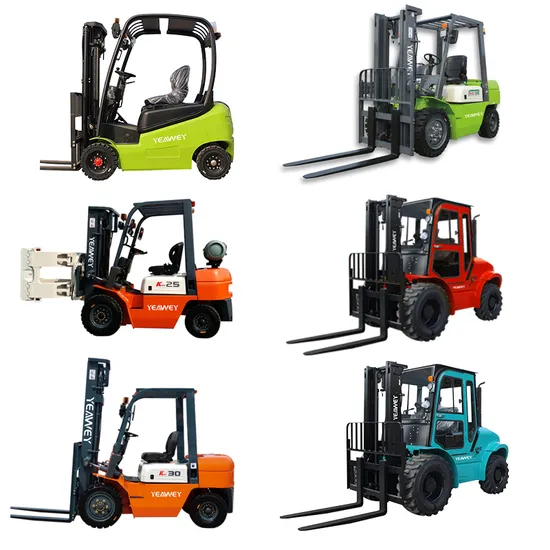

More Pictures

Other Products

Diesel Forklift Truck

Heavy Duty Diesel Forklift

Dual Fuel LPG Forklift Truck

Lithium Battery Forklift

2WD Rough Terrain Forklift

4WD Rough Terrain Forklift

Company ProfileQINGDAO YEAWEYDA MACHINERY Co., Ltd is one of major materials handling equipment manufacturer in China, focus on research development, production, sales and service of various machines. We mainly manufactures diesel forklifts, gasoline forklifts, LPG/dual fuel forklifts, electric forklifts and warehouse handling equipment from 1.5Ton to 15 Ton load capacity.
YEAWEYDA endeavors to provide our customers with the optimal products and professional services. For customers who use our products under special working conditions, our after-sales team will sort out various problems on the project and provide training to operators to improve their work efficiency. We will conduct regular follow-up visits to customers based on the project situation, humbly accept various suggestions and opinions from customers, and continuously improve product and service quality.
We have a complete after-sales service system and take every communication with you seriously to continuously improve and enhance our service. We can give you professional suggestions on product selection, fault determination, daily maintenance, etc. Using YEAWEYDA machines will make your job easier and more efficient.
Certifications
Packaging & Shipping
FAQQ: What's your main products?
A: Our products including diesel forklift, gasoline forklift, LPG forklift, electric forklift, rough terrain forklift and warehouse equipments.
Q: How about the Pre-sell and after-sale service?
A: We are 24 hours online to provide you pre-sell service, our sales team will give you qiuck feedback and suggest suitable materials handling equipments.
For after sales services, the warranty time is 2 year or 2000 working hours, The replacement parts will be send to buyer by air express directly and we will offer professional technical support to repair the forklifts.
Q: What's your MOQ for bulk?
A: Our minimum order quantity is 1 units by less container loading or more than 2 units by full container loading.
More details pls contact with us.
Q: What is the lead-time of bulk?
A: As a forklift manufacturer, we have plenty stock of spare parts, so our delivery time is very short, usually it's 5-7 days for standard forklifts while 10-15 days if buyers have special requirements after the receipt of the down payment.
Q: What is the payment term?
A: L/C. T/T, D/P was accpetable for us. It depends the buyers.
More details pls contact with us.
Q: What's your main markets? How about the proportion of them?
A: Our largest market is in South America 30%, Australia 25%, Middle East 10% and other regions all over the world.
